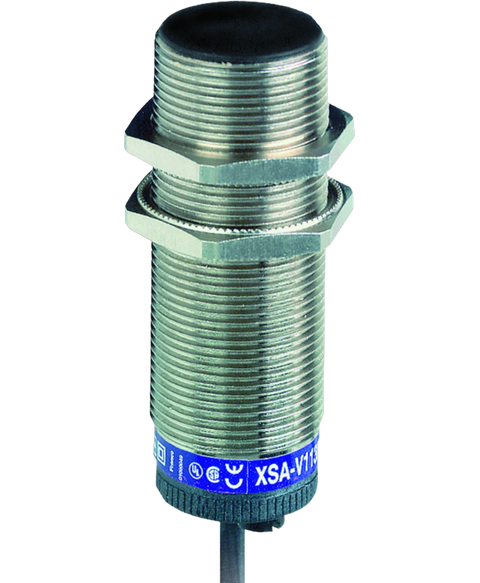

Telemecanique XSA-V12801
Inductive proximity sensor, osisense xs, 10mm detection range, 24-240VAC, 24-210VDC, 800Hz switching, 200-300mA, m30 thread, 2 m cable length, shielded, -25 to +70 degrees c, IP67
This Telemecanique XSA-V12801 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Speed sensors range and is referenced internally as PartLogic SKU PL26805543335.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Housing Material | Metal |
| Length | 81 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 210 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 24 V |
| Mount | Flush |
| Operating Supply Voltage | 240 V |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 10 mm |
| Sensing Method | Inductive |
| Termination | Wire |
