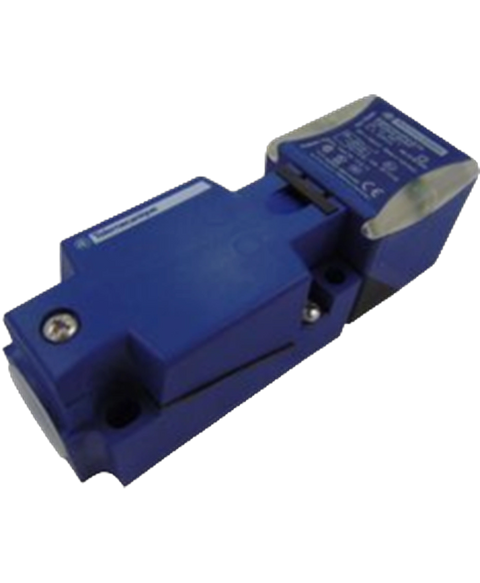

Telemecanique XS8C4A4PCG13
Inductive proximity sensor, xs8, 4-wire, 40mm nominal sensing distance, 12-48VDC, 1 NO + 1 NC, pnp, screw-clamp terminals, non flush mountable, IP65,IP67,ip69k
This Telemecanique XS8C4A4PCG13 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805671420.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Depth | 117 mm |
| Housing Material | Plastic |
| Length | 40 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Operating Supply Voltage | 48 V |
| Ratings | IP65 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switching Current | 200 mA |
| Switching Frequency | 200 Hz |
| Termination | Screw |
| Width | 40 mm |
