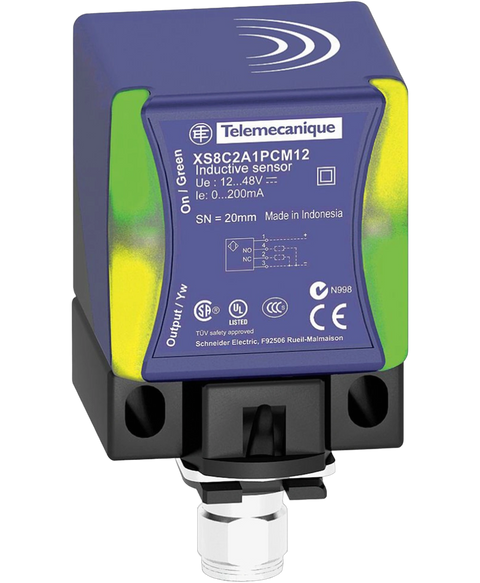

Telemecanique XS8C2A1PCM12
Inductive proximity sensor, xs8c series, 20mm sensing range, flush, pnp, NO,NC, 12-48VDC, 3-wire, male m12 4-pin connector, IP67
This Telemecanique XS8C2A1PCM12 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801464469.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Depth | 40 mm |
| Housing Material | PBT |
| Length | 40 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Number of Pins | 4 |
| Operating Supply Voltage | 48 V |
| Ratings | IP65 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switching Current | 200 mA |
| Switching Frequency | 300 Hz |
| Termination | Connector |
| Width | 72.9 mm |
