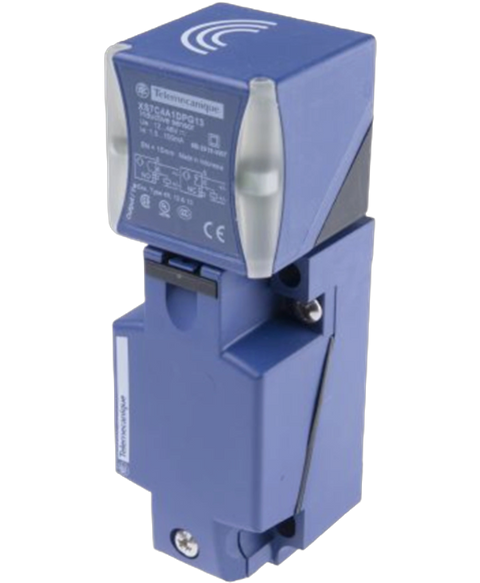

Telemecanique XS7C4A1DPG13
Inductive proximity sensor, 8-15mm detection range, 12-48VDC, npn,pnp, NO,NC, 300Hz switching, flush mountable, 2 wire, IP65,67,69
This Telemecanique XS7C4A1DPG13 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805521898.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Depth | 117 mm |
| Housing Material | Plastic |
| Length | 40 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Operating Supply Voltage | 48 V |
| Ratings | IP65 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switching Current | 100 mA |
| Switching Frequency | 300 Hz |
| Termination | Screw |
| Width | 40 mm |
