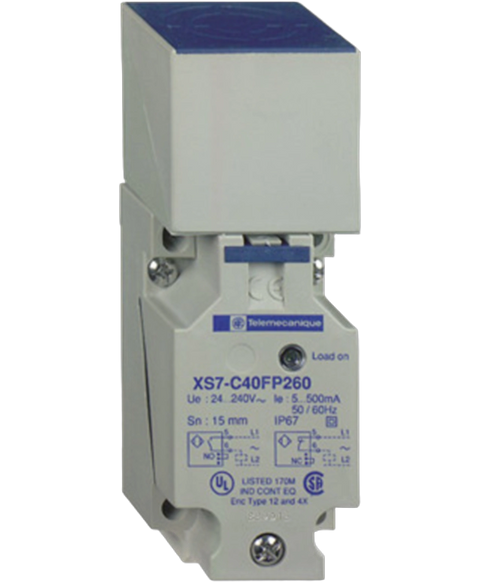

Telemecanique XS7-C40FP260
Discontinued by manufacturer, proximity switch, 24 , 240VAC, 50 , 60Hz, 5,500mA, IP67
This Telemecanique XS7-C40FP260 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801425003.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Depth | 40 mm |
| Housing Material | Plastic |
| Length | 117 mm |
| Max Frequency | 25 Hz |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Mount | Flush |
| Operating Supply Voltage | 240 V |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 15 mm |
| Sensing Method | Inductive |
| Switching Current | 500 mA |
| Switching Frequency | 25 Hz |
| Termination | Screw |
| Width | 41 mm |
