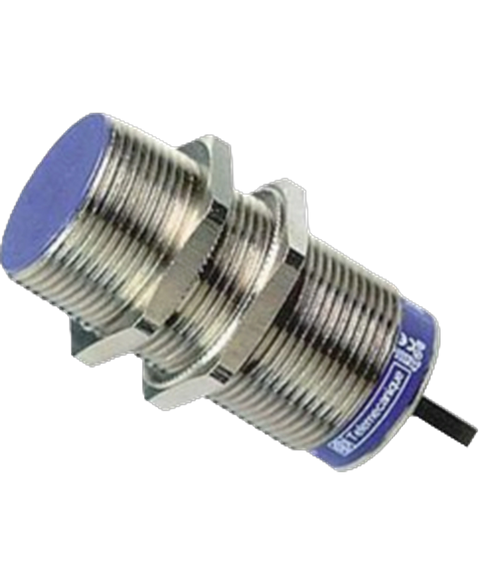

Telemecanique XS630B1PBL2
Inductive proximity sensor, 15mm sensing distance, 12-48VDC, 1 NC, pnp, m30 cylindrical body, nickel plated brass, flush mountable, 2 m cable length, suggested replacement for xsah10723
This Telemecanique XS630B1PBL2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801410010.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Length | 62 mm |
| Max Frequency | 500 Hz |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Mount | Flush |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 48 V |
| Ratings | IP67, IP69K |
| RoHS | Compliant |
| Sensing Distance | 15 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Switching Frequency | 500 Hz |
| Termination | Cable |
