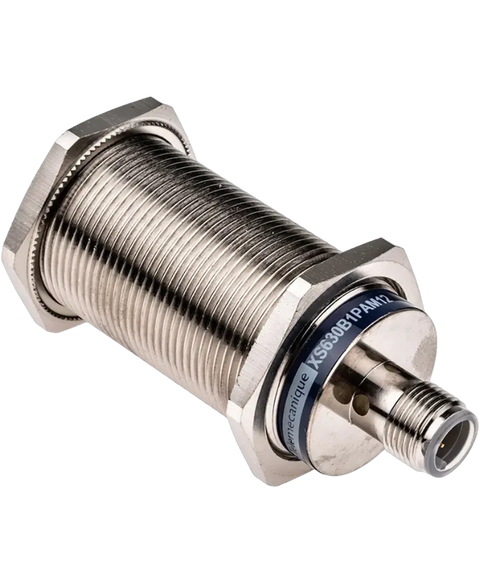

Telemecanique XS630B1PAM12
Proximity sensor, xs series, 12-48VDC, size: 74mm, pnp, m30 thread, sensing distance 15mm, 3-wire, male connector m12, 4-pins
This Telemecanique XS630B1PAM12 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801466713.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Length | 74 mm |
| Max Frequency | 500 Hz |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Number of Pins | 4 |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 48 V |
| Ratings | IP67, IP69K |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 15 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Switching Frequency | 500 Hz |
| Termination | Connector |
