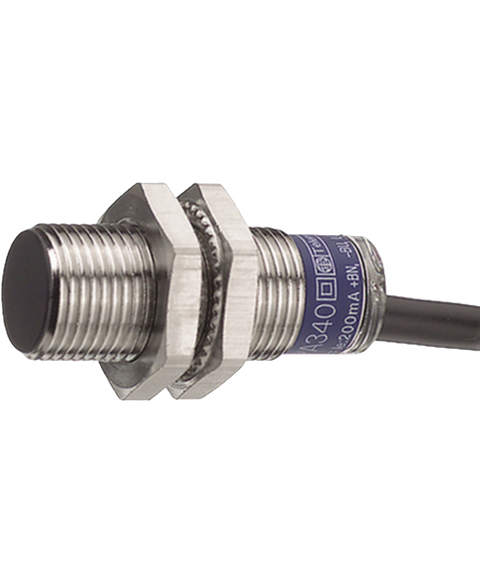

Telemecanique XS630B1PAL2
Proximity sensor, 15mm nominal sensing distance, 12 - 48VDC, 1 NO, pnp, cylindrical m30, 3-wire, 2 m cable length, IP68,69k. replacement for xs2m30pa370
This Telemecanique XS630B1PAL2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801362926.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Diameter | 30 mm |
| Lead Length | 2 m |
| Length | 62 mm |
| Load Current | 200 mA |
| Max Frequency | 500 Hz |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 48 V |
| Ratings | IP67, IP69K |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 15 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Switching Frequency | 500 Hz |
| Termination | Wire |
| Thread Size | M30 |
