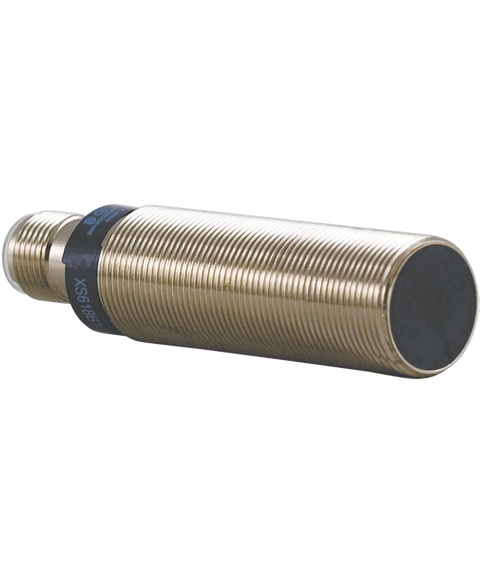

Telemecanique XS618B1NAM12
Inductive proximity sensor, 8mm sensing range, m18, 74mm length, 12-48VDC, npn, 1 NO, 1000Hz switching, 3-wire, m12 male 4-pin connector, IP67
This Telemecanique XS618B1NAM12 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801446934.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Length | 74 mm |
| Max Frequency | 1 kHz |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Number of Pins | 4 |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 48 V |
| Ratings | IP67, IP69K |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 8 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Switching Frequency | 1 kHz |
| Termination | Connector |
