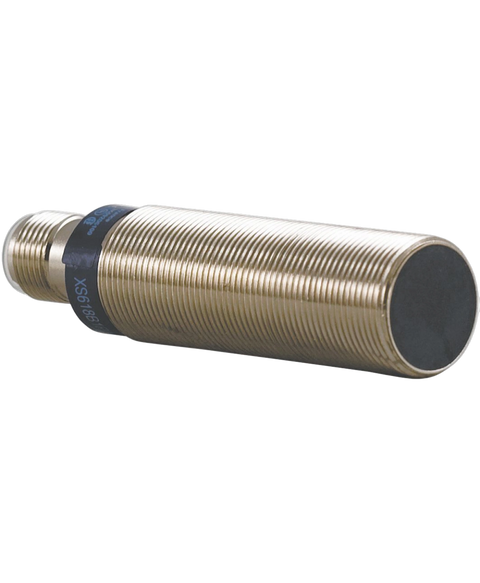

Telemecanique XS618B1NAL2
Inductive proximity sensor, 8mm sensing range, 12-48VDC, 1 NO, npn, 3-wire, m18 cylindrical, flush mountable, 2 meter cable, -25 to +70 degree c, IP68,69k
This Telemecanique XS618B1NAL2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805640601.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Length | 62 mm |
| Max Frequency | 1 kHz |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 48 V |
| Ratings | IP67, IP69K |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 8 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Switching Frequency | 1 kHz |
| Termination | Cable |
