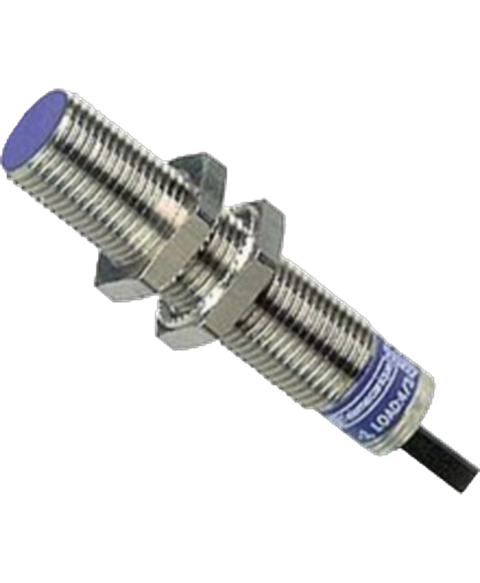

Telemecanique XS612B1PAL2
Inductive proximity sensor, osisense xs 612 series, 4mm sensing distance, 12-48VDC, pnp, NO, m12 x 1 thread, -25 to +70 degree c, 2m cable, replaces xs2-m12pa370
This Telemecanique XS612B1PAL2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805541904.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Lead Length | 2 m |
| Length | 53 mm |
| Load Current | 200 mA |
| Max Frequency | 2.5 kHz |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 48 V |
| Ratings | IP67, IP69K |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 4 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Switching Frequency | 2.5 kHz |
| Termination | Wire |
| Thread Size | M12 |
