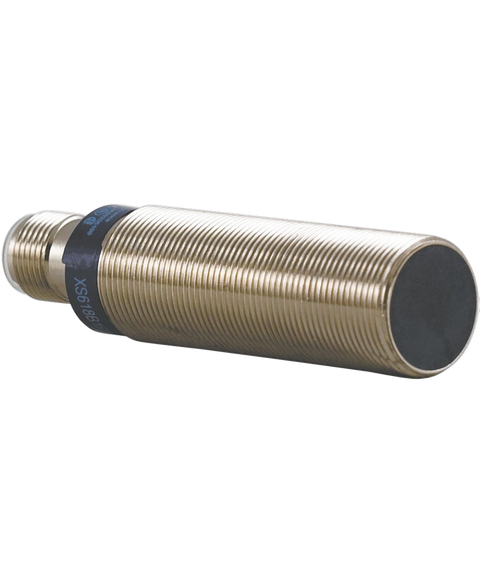

Telemecanique XS612B1NAL2
Proximity sensor, inductive, threaded barrel, m12 thread, 4mm detection range, NO, npn, 2 m cable, 12-48VDC, ip69k, flush mounting, brass nickel plated housing, 58VDC max
This Telemecanique XS612B1NAL2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805553390.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Length | 53 mm |
| Max Frequency | 2.5 kHz |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 48 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 48 V |
| Ratings | IP67, IP69K |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 4 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Switching Frequency | 2.5 kHz |
| Termination | Wire |
