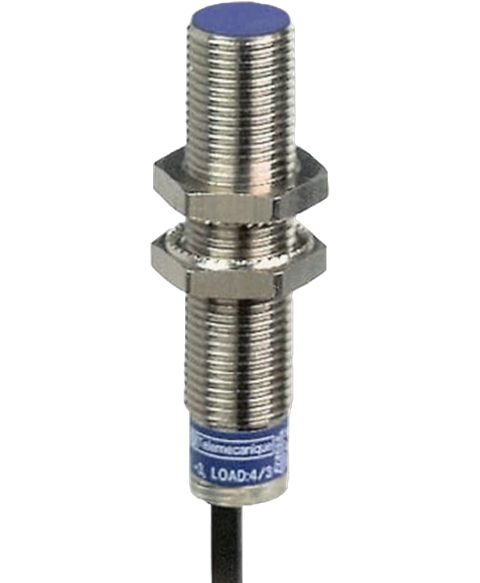

Telemecanique XS612B1MBL2
Inductive proximity sensor, 2.5-4mm sensing range, flush mountable, 2-wire, 1 NC, 24-240VAC,dc, 50,60Hz, m12 thread, 54mm length, fixed, 2-wire, pvc cable connection, IP68
This Telemecanique XS612B1MBL2 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805670426.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Length | 53 mm |
| Max Frequency | 2.5 kHz |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 264 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 20 V |
| Mount | Flush |
| Operating Supply Current | 10 mA |
| Operating Supply Voltage | 240 V |
| Ratings | IP66, IP69K |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Sensing Distance | 4 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Termination | Wire |
