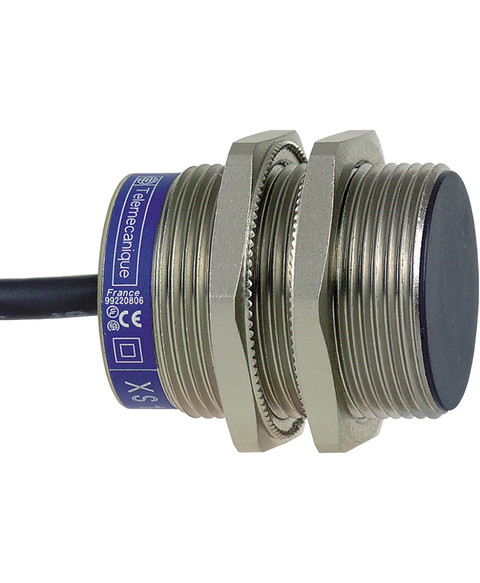

Telemecanique XS1N30PA349
Inductive proximity sensor, 20mm sensing distance, 3-wire, discrete, 12-24VDC, 200mA, m30 x 1.5 thread, flush mountable, 2 meter cable, IP68-ip69k
This Telemecanique XS1N30PA349 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805526513.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Length | 42.6 mm |
| Load Current | 200 mA |
| Max Frequency | 500 Hz |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -25 °C |
| Mount | Flush |
| Operating Supply Voltage | 24 V |
| Ratings | IP67, IP68 |
| RoHS | Compliant |
| Sensing Distance | 20 mm |
| Sensing Method | Inductive |
| Switching Current | 200 mA |
| Switching Frequency | 500 Hz |
| Termination | Wire |
