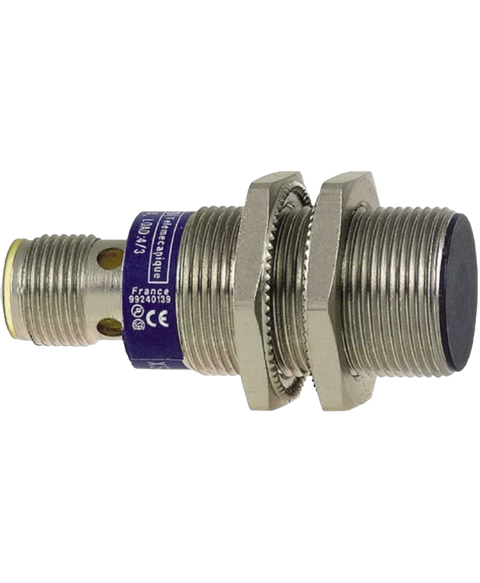

Telemecanique XS1N18PA349D
Inductive proximity sensor, flush mountable, cylindrical m18, 50mm length, 8-15mm sensing range, 12-24VDC, pnp, 1 NO, 1000Hz switching, 3 wire, male connector m12 4 pin, IP67,69k
This Telemecanique XS1N18PA349D is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801465558.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Height | 45 mm |
| Length | 50 mm |
| Load Current | 200 mA |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 38 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 10 V |
| Mount | Flush |
| Operating Supply Voltage | 24 V |
| Ratings | IP67 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switching Current | 200 mA |
| Switching Frequency | 1 kHz |
| Termination | Connector |
| Thread Size | M18 |
