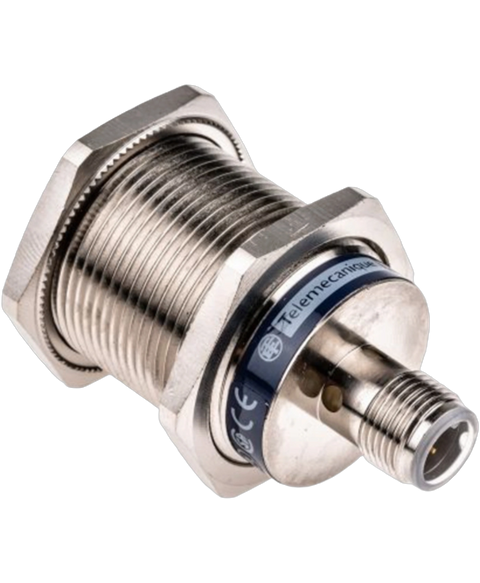

Telemecanique XS130B3PAM12
Inductive proximity sensor, cylindrical m30, 55mm length, 1 NO, pnp, 15mm nominal sensing distance, 12-24VDC, flush mountable, 3-wire, IP65,67
This Telemecanique XS130B3PAM12 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26805656076.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Diameter | 30 mm |
| Length | 55 mm |
| Load Current | 200 mA |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Number of Pins | 4 |
| Operating Supply Voltage | 24 V |
| Ratings | IP67, IP69K |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switching Current | 200 mA |
| Switching Frequency | 500 Hz |
| Termination | Connector |
| Thread Size | M30 |
