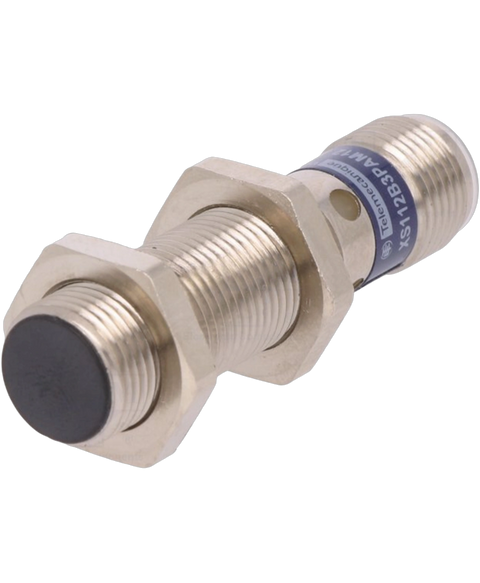

Telemecanique XS112B3PAM12
Inductive sensor, xs1 series, 3-wire, 4mm sensing distance, pnp, 12-24VDC, 1 NO,50mm, m12 male connector, 4 pin, flush mountable
This Telemecanique XS112B3PAM12 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Proximity sensors > Inductive range and is referenced internally as PartLogic SKU PL26801431619.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Diameter | 12 mm |
| Lead Free | Lead Free |
| Length | 50 mm |
| Load Current | 200 mA |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 24 V |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage (DC) | 12 V |
| Mount | Flush |
| Number of Pins | 4 |
| Operating Supply Voltage | 24 V |
| Ratings | IP67, IP69K |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Switching Current | 200 mA |
| Switching Frequency | 2.5 kHz |
| Termination | Connector |
| Thread Size | M12 |
