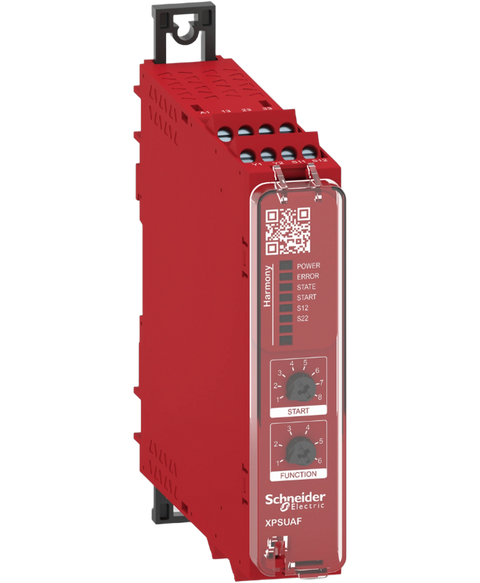

Telemecanique XPSUAF13AP
Safety relay, harmony, 2 safety input 24VDC 5mA, 3 NO safety outputs, 24VAC,dc supply, 8A, IP20 terminals , IP40 housing , IP54 mounting area
This Telemecanique XPSUAF13AP is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805635988.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$322.33
(inc. GST)
In Stock
| Range of product | Harmony Safety Automation |
| Product or component type | Safety module |
| Safety module name | XPSUAF |
| Safety module application | Monitoring antivalent contacts | For emergency stop, guard and light curtain monitoring |
| Function of module | Emergency stop button with 2 NC contacts | Guard monitoring with 1 or 2 limit switches | Monitoring 2 PNP sensors | Magnetic switch monitoring | Light curtain monitoring | RFID switch | Monitoring of electro-sensitive protection equipment (ESPE) | Proximity sensor monitoring |
| Safety level | Can reach PL e/category 4 conforming to ISO 13849-1 | Can reach SILCL 3 conforming to IEC 62061 | Can reach SIL 3 conforming to IEC 61508 |
| Safety reliability data | MTTFd > 30 years conforming to ISO 13849-1 | Dcavg >= 99 % conforming to ISO 13849-1 | PFHd = 1.13E-09 conforming to ISO 13849-1 | HFT = 1 conforming to IEC 62061 | PFHd = 1.13E-09 conforming to IEC 62061 | SFF > 99% conforming to IEC 62061 | HFT = 1 conforming to IEC 61508-1 | PFHd = 1.13E-09 conforming to IEC 61508-1 | SFF > 99% conforming to IEC 61508-1 | Type = B conforming to IEC 61508-1 |
| Electrical circuit type | NC pair | PNP pair | Antivalent pair | OSSD pair |
| Connections - terminals | Removable screw terminal block, 0.2...2.5 mm² solid or flexible | Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor | Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor | Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel | Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] rated supply voltage | 24 V AC - 15...10 % | 24 V DC - 20...20 % |
| Synchronisation time between inputs | 0.5 s | 2 s | 4 s |
| Type of start | Automatic/manual/monitored |
| Power consumption in W | 2.0 W 24 V DC |
| Power consumption in VA | 5.0 VA 24 V AC 50/60 Hz |
| Input protection type | Internal, electronic |
| safety outputs | 3 NO |
| safety inputs | 2 safety input 24 V DC 5 mA |
| maximum wire resistance | 500 Ohm |
| Input compatibility | Normally closed circuit conforming to ISO 14119 | XC limit switch conforming to ISO 14119 | Mechanical contact conforming to ISO 14119 | Normally closed circuit conforming to ISO 13850 | Antivalent pair conforming to ISO 14119 | OSSD pair conforming to IEC 61496-1-2 | 3-wire proximity sensors PNP |
| [Ie] rated operational current | 5 A AC-1 for normally open relay contact | 3 A AC-15 for normally open relay contact | 5 A DC-1 for normally open relay contact | 3 A DC-13 for normally open relay contact |
| control outputs | 3 on/off configurable pulsed output |
| Input/output type | Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related |
| [Ith] conventional free air thermal current | 8 A |
| Associated fuse rating | 10 A gG for NO relay output circuit conforming to IEC 60947-1 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 15 V for relay output |
| Maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 250 V (pollution degree 2) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category II conforming to IEC 60947-1 |
| Local signalling | LED (green) for power ON | LED (red) for error | LED (yellow) for start | LED (yellow) for safety status | LED (yellow) for safety input S12 | LED (yellow) for safety input S22 |
| Mounting support | 35 mm symmetrical DIN rail |
| Depth | 120 mm |
| Height | 100 mm |
| Width | 22.5 mm |
| Net weight | 0.200 kg |
| Standards | IEC 60947-5-1 | IEC 61508-1 functional safety standard | IEC 61508-2 functional safety standard | IEC 61508-3 functional safety standard | IEC 61508-4 functional safety standard | IEC 61508-5 functional safety standard | IEC 61508-6 functional safety standard | IEC 61508-7 functional safety standard | ISO 13849-1 functional safety standard | IEC 62061 functional safety standard |
| Product certifications | TÜV | cULus |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (housing) conforming to IEC 60529 | IP54 (mounting area) conforming to IEC 60529 |
| Ambient air temperature for storage | -25…85 °C |
| Relative humidity | 5…95 % non-condensing |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.700 cm |
| Package 1 Width | 13.700 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 281.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.100 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 128 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 50.772 kg |
