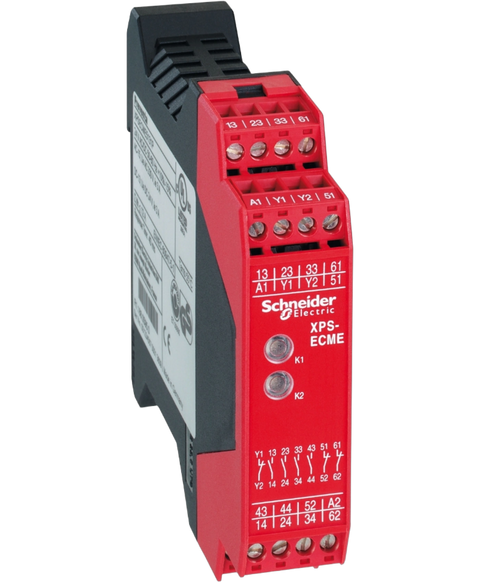

Telemecanique XPSECME5131P
Discontinued by manufacturer 06,30,2021, safety relay, xpsecme, preventa, 4 NO , 3 NC, 24 V AC,DC, 50,60Hz, replaced by xpsuep14ap
This Telemecanique XPSECME5131P is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26904542208.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Preventa Safety automation |
| Product or component type | Preventa safety module |
| Safety module name | XPSECME |
| Safety module application | Increasing the number of safety contacts |
| Function of module | Increasing the number of safety contacts |
| Safety level | Can reach PL e/category 4 can reach the maximum safety level of module base conforming to EN/ISO 13849-1 | Can reach SILCL 3 can reach the maximum safety level of module base conforming to EN/IEC 62061 |
| Safety reliability data | MTTFd = 100 years conforming to EN/ISO 13849-1 | DC = 60...90 % conforming to EN/ISO 13849-1 | PFHd = 2E-7 1/h conforming to EN/IEC 62061 |
| Output type | Relay, 4 NO circuit(s), volt-free |
| [Us] rated supply voltage | 24 V AC/DC - 15...10 % |
| Number of additional circuits | 3 NC |
| Supply frequency | 50/60 Hz |
| Power consumption in VA | 5 VA |
| Input protection type | Internal, electronic |
| Breaking capacity | 360 VA holding AC-15 B300 relay output | 3600 VA inrush AC-15 B300 relay output |
| Output thermal current | 6 A per relay for relay output |
| [Ith] conventional free air thermal current | 12 A for relay output |
| Associated fuse rating | 6 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 17 V for relay output |
| Maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2 |
| Local signalling | 2 LEDs |
| Connections - terminals | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end | Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel | Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end | Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² flexible without cable end | Captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.27 kg |
| Standards | EN/IEC 60204-1 | EN/IEC 60947-5-1 |
| Product certifications | UL | CSA | BG |
| IP degree of protection | IP20 (terminals) conforming to EN/IEC 60529 | IP40 (enclosure) conforming to EN/IEC 60529 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -25…75 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.0 cm |
| Package 1 Width | 11.2 cm |
| Package 1 Length | 4.2 cm |
| Package 1 Weight | 210.0 g |
