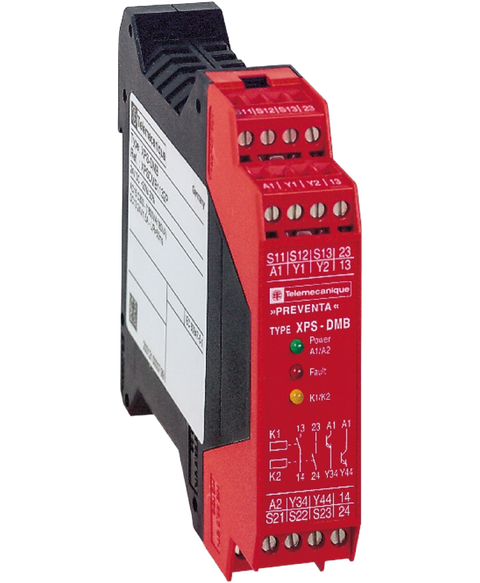

Telemecanique XPSDMB1132P
Discontinued by manufacturer, safety relay, magnetic switch, 2.50A, 300 v, 24VDC
This Telemecanique XPSDMB1132P is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805641019.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$731.29
(inc. GST)
In Stock
| Range of product | Preventa Safety automation |
| Product or component type | Preventa safety module |
| Safety module name | XPSDMB |
| Safety module application | Monitoring 2 coded magnetic switches |
| Function of module | Coded magnetic switch monitoring |
| Safety level | Can reach PL e/category 4 conforming to EN/ISO 13849-1 | Can reach SILCL 3 conforming to EN/IEC 62061 |
| Safety reliability data | MTTFd = 83.1 years conforming to EN/ISO 13849-1 | DC > 99 % conforming to EN/ISO 13849-1 | PFHd = 3.92E-9 1/h conforming to EN/IEC 62061 |
| [Us] rated supply voltage | 24 V DC - 20...20 % |
| Output type | Relay, 2 NO circuit(s), volt-free |
| Number of additional circuits | 2 solid state outputs |
| Synchronisation time between inputs | < 0.5 s |
| Power consumption in W | 2.5 W |
| Input protection type | Internal, electronic |
| [Uc] control circuit voltage | 28 V DC |
| Maximum line resistance | 100 Ohm |
| Breaking capacity | 180 VA holding AC-15 C300 relay output | 1800 VA inrush AC-15 C300 relay output |
| Output thermal current | 6 A per relay for relay output |
| [Ith] conventional free air thermal current | 12 A |
| Associated fuse rating | 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 | 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 17 V for relay output |
| Maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60947-5-1 | 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60947-5-1 | 4 kV overvoltage category III conforming to DIN VDE 0110 part 1 |
| Local signalling | 3 LEDs |
| Connections - terminals | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end | Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel | Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end | Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible without cable end | Captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Current consumption | 8 mA at 28 V DC on power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.25 kg |
| Standards | EN/IEC 60204-1 | EN 1088/ISO 14119 | EN/IEC 60947-5-1 |
| Product certifications | UL | CSA | TÜV |
| IP degree of protection | IP20 (terminals) conforming to EN/IEC 60529 | IP40 (enclosure) conforming to EN/IEC 60529 |
| Ambient air temperature for operation | -10…55 °C |
| Ambient air temperature for storage | -25…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 10.3 cm |
| Package 1 Length | 12.0 cm |
| Package 1 Weight | 211.0 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.414 kg |
