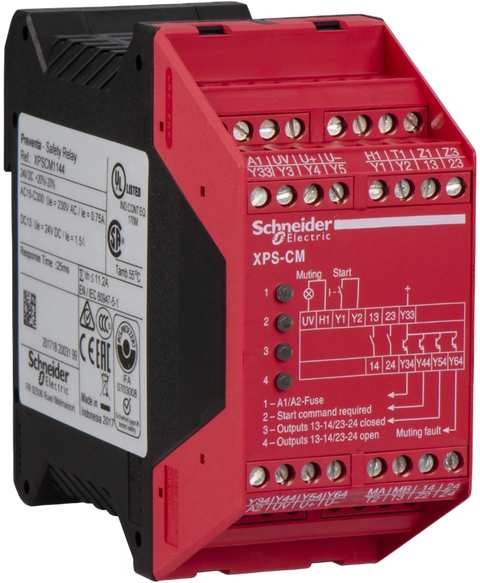

Telemecanique XPSCM1144
Safety relay, xpscm, preventa, for single beam photoelectric sensors, 2 NO, 24VDC, replaces xpscep5141
This Telemecanique XPSCM1144 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26928568683.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$891.75
(inc. GST)
In Stock
| Range of product | Telemecanique Safety light curtains XUSL |
| Product or component type | Safety module |
| Safety module name | XPSCM |
| Safety module application | For monitoring of single beam photo-electric sensor |
| Function of module | Built-in muting |
| Safety level | Can reach category 2 with the appropriate control system and correctly wired conforming to EN/ISO 13849-1 | Can reach SILCL 1 with the appropriate control system and correctly wired conforming to EN/IEC 62061 | Can reach PL = c with the appropriate control system and correctly wired conforming to EN/ISO 13849-1 |
| Safety reliability data | MTTFd = 16.6 years conforming to EN/ISO 13849-1 | DC = 95.5 % conforming to EN/ISO 13849-1 | PFH = 3.12E-7 1/h conforming to EN/IEC 61508 | PFHd = 3.12E-7 1/h conforming to EN/IEC 62061 |
| Number of inputs | 2 (terminal(s) MA, MB) for muting function | 4 (terminal(s) Z1, Z2, Z3, Z4) for sensor |
| Input voltage | 24 V DC for sensor | 24 V DC (terminal(s) U+, U-) for muting function |
| Input compatibility | XC limit switch for muting function | XU2M18PP340... for muting function | XU2S18PP340... (infrared) for sensor | XU9M18PP340... for muting function |
| Connections - terminals | Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid or flexible without cable end | Captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel | Captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel | Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid or flexible without cable end | Captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel | Captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Output type | Relay 2 NO (13-14, 23-24), volt-free |
| Number of additional circuits | 0 |
| [Us] rated supply voltage | 24 V DC - 20...20 % |
| Sensor power supply | U+, U-: 24 V DC |
| Maximum supply current for sensors | 200 mA |
| Input current | 200 mA for muting function |
| Synchronisation time between inputs | 3 s (+/- 20 %) for the activation of the MA/MB muting signal |
| Muting maximum duration | 60 s (- 10...30 %) |
| Maximum line resistance | 10 Ohm for sensor power supply |
| Breaking capacity | 180 VA holding AC-15 C300 relay output | 1800 VA inrush AC-15 C300 relay output |
| Associated fuse rating | 4 A gG for relay output conforming to DIN VDE 0660 part 200 | 4 A gG for relay output conforming to EN/IEC 60947-5-1 | 6 A fast blow for relay output conforming to DIN VDE 0660 part 200 | 6 A fast blow for relay output conforming to EN/IEC 60947-5-1 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 17 V for relay output |
| Maximum response time on input open | 25 ms |
| Local signalling | 1 LED, function electronic internal fuse status | 1 LED, function restarting | 1 LED, function safety outputs closed | 1 LED, function safety outputs open | 1 incandescent lamp, function muting power consumption: 4…6.5 W |
| Output thermal current | 5.6 A per relay | 11 A maximum |
| Power consumption in W | 15 W |
| Protection type | Electronic internal fuse |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to DIN VDE 0110 parts 1 and 2 | 300 V (pollution degree 2) conforming to EN/IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to DIN VDE 0110 parts 1 and 2 | 4 kV overvoltage category III conforming to EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -10…55 °C |
| Ambient air temperature for storage | -25…85 °C |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (enclosure) conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.4 cm |
| Package 1 Width | 11.6 cm |
| Package 1 Length | 16.0 cm |
| Package 1 Weight | 400.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 8.564 kg |
