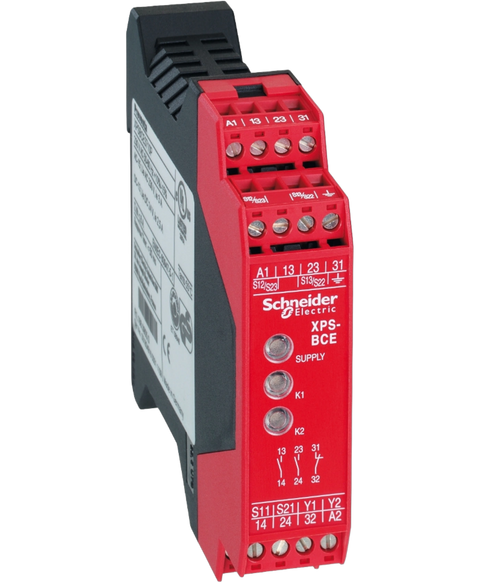

Telemecanique XPSBCE3110P
Discontinued by manufacturer 01,23,2021, safety relay, xpsbce, preventa, two-hand control, 2 NO , 1 NC, 24 V AC,DC, 50,60Hz, replaced by xpsus12ap
This Telemecanique XPSBCE3110P is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805650865.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Preventa Safety automation |
| Product or component type | Preventa safety module |
| Safety module name | XPSBCE |
| Safety module application | For electrical monitoring of two-hand control stations |
| Function of module | Monitoring two-hand control station |
| Safety level | Can reach PL e/category 4 conforming to EN/ISO 13849-1 | Can reach SILCL 3 conforming to EN/IEC 62061 |
| Safety reliability data | DC > 99 % conforming to EN/ISO 13849-1 | MTTFd = 37 years conforming to EN/ISO 13849-1 | PFHd = 3E-8 1/h conforming to EN/IEC 62061 |
| Connections - terminals | Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel | Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end | Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end | Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² flexible without cable end |
| Output type | Relay, 2 NO circuit(s), volt-free |
| Number of additional circuits | 1 NC |
| [Us] rated supply voltage | 24 V AC/DC - 15...10 % |
| Synchronisation time between inputs | 0.5 s |
| Supply frequency | 50/60 Hz |
| Power consumption in VA | 4 VA |
| Input protection type | Internal, electronic |
| Number of inputs | 1 NC + NO |
| Input compatibility | Two-hand control conforming to EN 574/ISO 13851-III C |
| [Uc] control circuit voltage | 24 V DC |
| Breaking capacity | 3600 VA inrush AC-15 B300 relay output | 360 VA holding AC-15 B300 relay output |
| [Ith] conventional free air thermal current | 6 A |
| Associated fuse rating | 6 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 17 V for relay output |
| Maximum response time on input open | 50 ms |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60947-5-1 | 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60947-5-1 | 4 kV overvoltage category III conforming to DIN VDE 0110 part 1 |
| Local signalling | 3 LEDs |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.272 kg |
| Standards | EN 574 type III C/ISO 13851 | EN/IEC 60947-5-1 | EN/IEC 60204-1 |
| Product certifications | UL | CSA | BG |
| IP degree of protection | IP20 (terminals) conforming to EN/IEC 60529 | IP40 (enclosure) conforming to EN/IEC 60529 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -25…75 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 11.5 cm |
| Package 1 Length | 12.0 cm |
| Package 1 Weight | 254.0 g |
