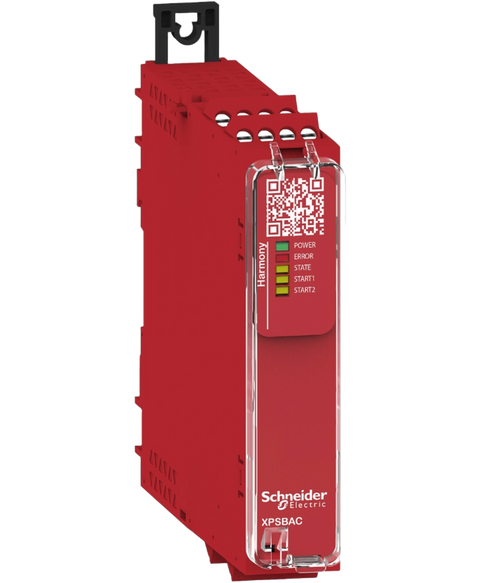

Telemecanique XPSBAC14AP
Safety relay, xpsbac, harmony xps, estop or guard, 4 NO , 1 NC, 24 V AC,DC, replacement for xpsac5121 , xpsac5121p
This Telemecanique XPSBAC14AP is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805527592.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$380.55
(inc. GST)
In Stock
| Range of product | Harmony Safety Automation |
| Product or component type | Safety module |
| Safety module name | XPSBAC |
| Safety module application | For emergency stop and protective guard applications |
| Function of module | Emergency stop button with 2 NC contacts | Guard monitoring with 1 or 2 limit switches |
| Safety level | Can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1 | Can reach SILCL 3 for normally open relay contact conforming to IEC 62061 | Can reach SIL 3 for normally open relay contact conforming to IEC 61508 | Can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1 | Can reach SILCL 1 for normally closed relay contact conforming to IEC 62061 | Can reach SIL 1 for normally closed relay contact conforming to IEC 61508 |
| Safety reliability data | MTTFd > 30 years conforming to ISO 13849-1 for normally open relay contact | Dcavg >= 99 % conforming to ISO 13849-1 for normally open relay contact | PFHd = 0.95E-09 conforming to ISO 13849-1 for normally open relay contact | HFT = 1 conforming to IEC 62061 for normally open relay contact | PFHd = 0.95E-09 conforming to IEC 62061 for normally open relay contact | SFF > 99% conforming to IEC 62061 for normally open relay contact | HFT = 1 conforming to IEC 61508-1 for normally open relay contact | PFHd = 0.95E-09 conforming to IEC 61508-1 for normally open relay contact | SFF > 99% conforming to IEC 61508-1 for normally open relay contact | Type = B conforming to IEC 61508-1 for normally open relay contact | MTTFd > 30 years conforming to ISO 13849-1 for normally closed relay contact | DC > 60 % conforming to ISO 13849-1 for normally closed relay contact | PFHd = 0.95E-09 conforming to ISO 13849-1 for normally closed relay contact | HFT=0 conforming to IEC 62061 for normally closed relay contact | PFHd = 0.95E-09 conforming to IEC 62061 for normally closed relay contact | SFF > 60% conforming to IEC 62061 for normally closed relay contact | HFT=0 conforming to IEC 61508-1 for normally closed relay contact | PFHd = 0.95E-09 conforming to IEC 61508-1 for normally closed relay contact | SFF > 60% conforming to IEC 61508-1 for normally closed relay contact | Type = B conforming to IEC 61508-1 for normally closed relay contact |
| Electrical circuit type | NC pair |
| Connections - terminals | Removable screw terminal block, 0.2...2.5 mm² solid or flexible | Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor | Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor | Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel | Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] rated supply voltage | 24 V AC - 15...10 % | 24 V DC - 20...20 % |
| Synchronisation time between inputs | Unlimited |
| Type of start | Automatic/manual/monitored |
| Power consumption in W | 1.5 W 24 V DC |
| Power consumption in VA | 3.5 VA 24 V AC 50/60 Hz |
| Input protection type | Internal, electronic |
| safety outputs | 4 NO + 1 NC |
| safety inputs | 0 |
| Input compatibility | Normally closed circuit conforming to ISO 14119 | XC limit switch conforming to ISO 14119 | Mechanical contact conforming to ISO 14119 | Normally closed circuit conforming to ISO 13850 |
| input terminal | Power supply |
| [Ie] rated operational current | 5 A AC-1 for normally open relay contact | 3 A AC-15 for normally open relay contact | 5 A DC-1 for normally open relay contact | 3 A DC-13 for normally open relay contact | 3 A AC-1 for normally closed relay contact | 1 A AC-15 for normally closed relay contact | 3 A DC-1 for normally closed relay contact | 1 A DC-13 for normally closed relay contact |
| control outputs | 0 |
| [Ith] conventional free air thermal current | 6 A |
| Associated fuse rating | 10 A gG for NO relay output circuit conforming to IEC 60947-1 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 5 V for relay output |
| Response time | 150 ms at 24 V AC | 80 ms at 24 V DC |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category II conforming to IEC 60947-1 |
| Local signalling | LED green with power marking for power ON | LED red with error marking for error | LED yellow with state marking for status | LED yellow with start1 marking for start input | LED yellow with start2 marking for start input |
| Mounting support | 35 mm symmetrical DIN rail |
| Depth | 120 mm |
| Height | 100 mm |
| Width | 22.5 mm |
| Net weight | 0.200 kg |
| Ambient air temperature for operation | -25…55 °C |
| Standards | IEC 60947-5-1 | IEC 61508-1 functional safety standard | IEC 61508-2 functional safety standard | IEC 61508-3 functional safety standard | IEC 61508-4 functional safety standard | IEC 61508-5 functional safety standard | IEC 61508-6 functional safety standard | IEC 61508-7 functional safety standard | ISO 13849-1 functional safety standard | IEC 62061 functional safety standard |
| Product certifications | TÜV | cULus |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (housing) conforming to IEC 60529 | IP54 (mounting area) conforming to IEC 60529 |
| Relative humidity | 5…95 % non-condensing |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 13.500 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 298.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.482 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 128 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 49.000 kg |
