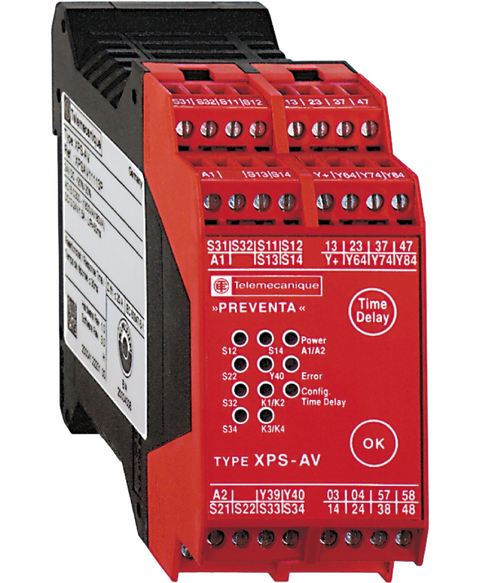

Product image for illustrative purposes only. Actual item may vary.
Telemecanique XPSAV11113P
Discontinued by manufacturer 07,03,2021, safety relay, emergency stop, 0-300 second time delay, 3 NO instantaneous opening relay, 3 NO time delay opening relay, 3 solid state outputs, removable terminal block, 24VDC, replaced by xpsuat13a3ap
This Telemecanique XPSAV11113P is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26801381290.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$420.31
(inc. GST)
In Stock
| Range of product | Preventa Safety automation |
| Product or component type | Preventa safety module |
| Safety module name | XPSAV |
| Safety module application | For emergency stop and switch monitoring |
| Function of module | Monitoring of a movable guard associated with 2 switches automatic start | Emergency stop monitoring 1-channel wiring | Emergency stop button with 1 NC contact, automatic start or unmonitored start | Emergency stop monitoring 2-channel wiring | Emergency stop button with 2 NC contacts, monitored start |
| Safety level | Can reach PL e/category 4 conforming to ISO 13849-1 | Can reach SILCL 3 conforming to IEC 62061 |
| Safety reliability data | DC > 99 % conforming to ISO 13849-1 | MTTFd = 75.8 years conforming to ISO 13849-1 | PFHd = 7.95E-9 1/h conforming to IEC 62061 |
| Type of start | Configurable |
| Connections - terminals | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid with cable end, with double bezel | Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid with cable end, with double bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Output type | Relay instantaneous opening, 3 NO circuit(s), volt-free | Relay time delay opening, 3 NO circuit(s), volt-free |
| Number of additional circuits | 3 solid state outputs |
| [Us] rated supply voltage | 24 V DC - 20...20 % |
| Synchronisation time between inputs | Unlimited for emergency stop | 1.5 s for guard |
| Maximum power consumption in W | 5 W DC |
| Input protection type | Internal, electronic |
| Time delay range | 0...300 s |
| [Uc] control circuit voltage | 24 V DC |
| Maximum line resistance | 100 Ohm <2000 m |
| Breaking capacity | 180 VA holding AC-15 C300 relay output | 1800 VA inrush AC-15 C300 relay output |
| Output thermal current | 2 A for 1 output and 4 A for the other 2 outputs for instantaneous and time delay outputs | 3.3 A for all 3 outputs for instantaneous and time delay outputs | 6 A for 1 output and 2 A for the other 2 outputs for instantaneous and time delay outputs |
| [Ith] conventional free air thermal current | 20 A |
| Associated fuse rating | 4 A gG or gL for instantaneous and time delay outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 | 6 A fast blow conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 17 V for relay output |
| Maximum response time on input open | 30 ms |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60947-5-1 | 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60947-5-1 | 4 kV overvoltage category III conforming to DIN VDE 0110 part 1 |
| Local signalling | 11 LEDs |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.32 kg |
| Standards | EN 1088/ISO 14119 | IEC 60204-1 | ISO 13850 | IEC 60947-5-1 |
| Product certifications | TÜV | UL | CSA |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (enclosure) conforming to IEC 60529 |
| Ambient air temperature for operation | -10…55 °C |
| Ambient air temperature for storage | -25…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.4 cm |
| Package 1 Width | 11.2 cm |
| Package 1 Length | 16.1 cm |
| Package 1 Weight | 449.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 9.709 kg |
