Telemecanique XPSATE5110

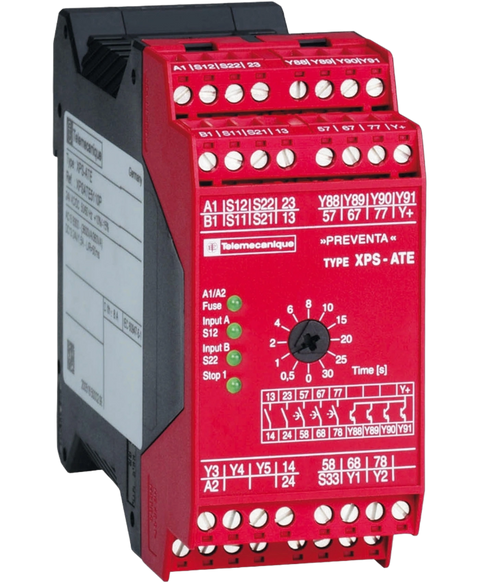

The Schneider Electric XPSATE5110 is a safety relay designed for effective monitoring in various applications. Rated at 24 volts DC, it features a DIN rail mounting system for secure installation and uses screw-clamp terminals for reliable connections.
This Telemecanique XPSATE5110 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805574743.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Preventa Safety automation |
| Product or component type | Preventa safety module |
| Safety module name | XPSATE |
| Safety module application | For emergency stop and switch monitoring |
| Function of module | Emergency stop button with 2 NC contacts |
| Safety level | Can reach PL d/category 3 time delay safety outputs conforming to ISO 13849-1 | Can reach PL e/category 4 instantaneous safety outputs conforming to ISO 13849-1 | Can reach SILCL 3 instantaneous safety outputs conforming to IEC 62061 | Can reach SILCL 2 time delay safety outputs conforming to IEC 62061 |
| Safety reliability data | DC > 99 % conforming to ISO 13849-1 instantaneous safety outputs | MTTFd = 134.8 years conforming to ISO 13849-1 instantaneous safety outputs | MTTFd = 54.5 years conforming to ISO 13849-1 time delay safety outputs | DC > 98.4 conforming to ISO 13849-1 time delay safety outputs | PFHd = 6.81E-9 1/h conforming to IEC 62061 instantaneous safety outputs | PFHd = 1.96E-8 1/h conforming to IEC 62061 time delay safety outputs |
| Type of start | Configurable |
| Connections - terminals | Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid with cable end, with double bezel | Captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid with cable end, with double bezel | Captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Output type | Relay instantaneous opening, 2 NO circuit(s), volt-free | Relay time delay opening, 3 NO circuit(s), volt-free |
| Number of additional circuits | 3 solid state outputs |
| [Us] rated supply voltage | 24 V AC/DC - 15...10 % |
| Synchronisation time between inputs | 75 ms |
| Supply frequency | 50/60 Hz |
| Maximum power consumption in W | 8 W |
| Input protection type | Internal, electronic |
| Time delay range | 0...30 s |
| [Uc] control circuit voltage | 24 V AC/DC |
| Breaking capacity | 180 VA holding AC-15 C300 relay output | 1800 VA inrush AC-15 C300 relay output |
| Output thermal current | 2.5 A for time delay outputs | 5 A for instantaneous outputs |
| [Ith] conventional free air thermal current | 8 A |
| Associated fuse rating | 4 A gG for time delay outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 | 6 A gG for instantaneous outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 17 V for relay output |
| Maximum response time on input open | 20 ms |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60947-5-1 | 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60947-5-1 | 4 kV overvoltage category III conforming to DIN VDE 0110 part 1 |
| Local signalling | 4 LEDs |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.28 kg |
| Standards | IEC 60947-5-1 | IEC 60204-1 | ISO 13850 |
| Product certifications | UL | CSA | TÜV |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (enclosure) conforming to IEC 60529 |
| Ambient air temperature for operation | -10…55 °C |
| Ambient air temperature for storage | -25…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.5 cm |
| Package 1 Width | 6.2 cm |
| Package 1 Length | 10.5 cm |
| Package 1 Weight | 339.0 g |
