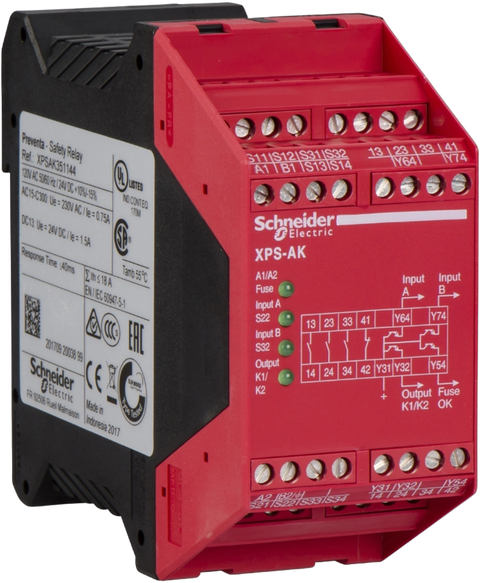

Product image for illustrative purposes only. Actual item may vary.
Telemecanique XPSAK351144
Discontinued by manufacturer 01,23,2021, safety module, xpsak, preventa, emergency stop, 3 NO, 1 NC, 4 solid state outputs, 120VAC, 24VDC, 50,60Hz, replaces gskc120vacdc, replaced by xpsuak32ap
This Telemecanique XPSAK351144 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26805677420.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$925.83
(inc. GST)
In Stock
| Range of product | Preventa Safety automation |
| Product or component type | Preventa safety module |
| Safety module name | XPSAK |
| Safety module application | For emergency stop, switch, sensing mat/edges or safety light curtain monitoring |
| Function of module | Monitoring of a movable guard associated with 2 switches and automatic start | Sensing mat and edges monitoring | Proximity sensor monitoring | Monitoring of electro-sensitive protection equipment (ESPE) | Multiple emergency stop monitoring 2-channel wiring | Monitoring of a movable guard | Emergency stop with 2 NC contacts monitoring 2-channel wiring | Emergency stop monitoring 1-channel wiring |
| Safety level | Can reach PL e/category 4 conforming to ISO 13849-1 | Can reach SILCL 3 conforming to IEC 62061 |
| Safety reliability data | DC > 99 % conforming to ISO 13849-1 | MTTFd = 154.5 years conforming to ISO 13849-1 | PFHd = 7.39E-9 1/h conforming to IEC 62061 |
| Type of start | Configurable |
| Connections - terminals | Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid with cable end, with double bezel | Captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid with cable end, with double bezel | Captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel | Captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Output type | Relay instantaneous opening, 3 NO circuit(s), volt-free |
| Number of additional circuits | 1 NC + 4 solid state outputs |
| [Us] rated supply voltage | 120 V AC - 15...10 % | 24 V DC - 15...10 % |
| Synchronisation time between inputs | 2 or 4 s depending of wiring (automatic start) | Unlimited (manual start) |
| Supply frequency | 50/60 Hz |
| Maximum power consumption in VA | 6 VA AC |
| Input protection type | Internal, electronic |
| [Uc] control circuit voltage | 24 V DC |
| Maximum line resistance | 28 Ohm |
| Breaking capacity | 180 VA holding AC-15 C300 relay output | 1800 VA inrush AC-15 C300 relay output |
| Output thermal current | 6 A per relay for relay output |
| [Ith] conventional free air thermal current | 18 A |
| Associated fuse rating | 4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 | 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 17 V for relay output |
| Maximum response time on input open | 40 ms |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60947-5-1 | 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60947-5-1 | 4 kV overvoltage category III conforming to DIN VDE 0110 part 1 |
| Local signalling | 4 LEDs |
| Current consumption | 30 mA at 24 V AC on power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.4 kg |
| Standards | ISO 13850 | IEC 60204-1 | EN 1088/ISO 14119 | IEC 60947-5-1 |
| Product certifications | UL | TÜV | CSA |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (enclosure) conforming to IEC 60529 |
| Ambient air temperature for operation | -10…55 °C |
| Ambient air temperature for storage | -25…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 12.5 cm |
| Package 1 Length | 10.5 cm |
| Package 1 Weight | 465.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.09 kg |
