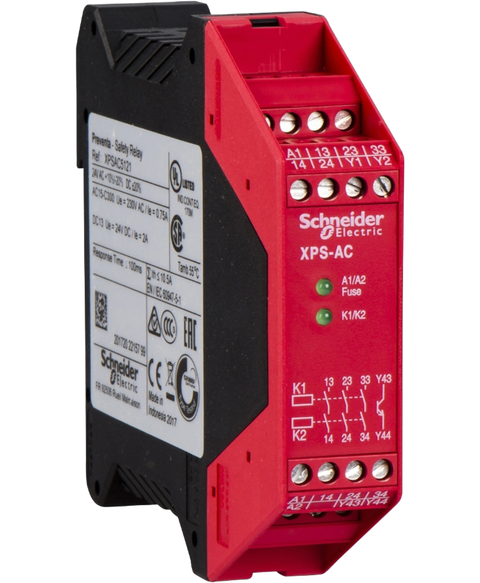

Telemecanique XPSAC5121
Discontinued by manufacturer, safety relay, xpsac, preventa, emergency stop, screw type terminal, DIN-rail mount, 3 NO, 1 soild state output, 24 V AC,DC, 50,60Hz, replaced by xpsbac14ap
This Telemecanique XPSAC5121 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Safety relays range and is referenced internally as PartLogic SKU PL26801353332.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Preventa Safety automation |
| Product or component type | Preventa safety module |
| Safety module name | XPSAC |
| Safety module application | For emergency stop and switch monitoring |
| Function of module | Emergency stop | Switch monitoring |
| Safety level | Can reach PL e/category 4 conforming to ISO 13849-1 | Can reach SILCL 3 conforming to IEC 62061 |
| Safety reliability data | MTTFd = 210.4 years conforming to ISO 13849-1 | DC > 99 % conforming to ISO 13849-1 | PFHd = 3.56E-9 1/h conforming to IEC 62061 |
| Type of start | Unmonitored |
| Connections - terminals | Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² flexible without cable end | Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid without cable end | Captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel | Captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel | Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² flexible without cable end | Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid without cable end | Captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel | Captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Output type | Relay instantaneous opening, 3 NO circuit(s), volt-free |
| Number of additional circuits | 1 solid state output |
| [Us] rated supply voltage | 24 V AC - 20...10 % | 24 V DC - 20...20 % |
| Supply frequency | 50/60 Hz |
| Maximum power consumption in W | 1.2 W DC |
| Maximum power consumption in VA | 2.5 VA AC |
| [Uc] control circuit voltage | 24 V |
| Breaking capacity | 180 VA holding AC-15 C300 relay output | 1800 VA inrush AC-15 C300 relay output |
| Output thermal current | 6 A per relay for relay output |
| [Ith] conventional free air thermal current | 10.5 A |
| Associated fuse rating | 4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 | 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Minimum output current | 10 mA for relay output |
| Minimum output voltage | 16 V for relay output |
| Maximum response time on input open | 100 ms |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60947-5-1 | 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60947-5-1 | 4 kV overvoltage category III conforming to DIN VDE 0110 part 1 |
| Local signalling | 2 LEDs |
| Current consumption | 40 mA at 24 V DC on power supply | 90 mA at 24 V AC on power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.16 kg |
| Standards | IEC 60947-5-1 | ISO 13850 | IEC 60204-1 | EN 1088/ISO 14119 |
| Product certifications | UL | CSA | TÜV |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 | IP40 (enclosure) conforming to IEC 60529 |
| Ambient air temperature for operation | -10…55 °C |
| Ambient air temperature for storage | -25…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 10.400 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 196.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.478 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 512 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 115.540 kg |
