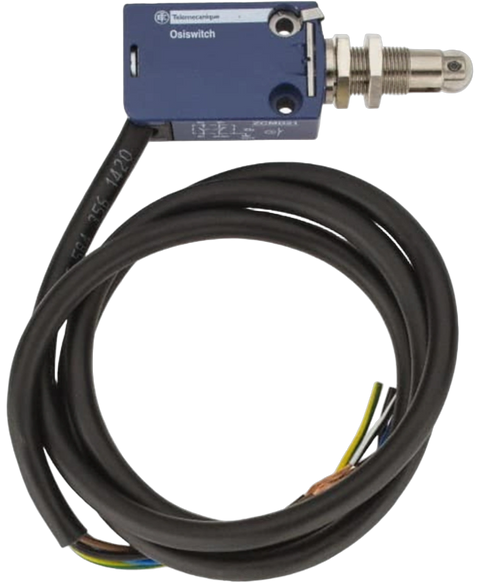

Telemecanique XCMD21F2L1
Limit switch, spdt, 1nc,1no, 240VAC, 250VDC, m12 steel roller plunger, spring return, 1 m cable length, IP66,67,68
This Telemecanique XCMD21F2L1 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches range and is referenced internally as PartLogic SKU PL26801436067.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Body Material | Zinc |
| Cable Length | 975.36 mm |
| Current Rating | 6 A |
| Depth | 16 mm |
| Electrical Life | 5 Mcycles |
| Height | 50 mm |
| Length | 30 mm |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 240 V |
| Max Voltage Rating (DC) | 250 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -25 °C |
| Mount | Cable, Panel, Screw |
| Operating Force | 7 N |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP66 |
| RoHS | Compliant |
| Termination | Connector |
| Throw Configuration | DP, DPST, SPDT |
| Voltage Rating (AC) | 240 V |
| Voltage Rating (DC) | 250 V |
| Width | 30 mm |
