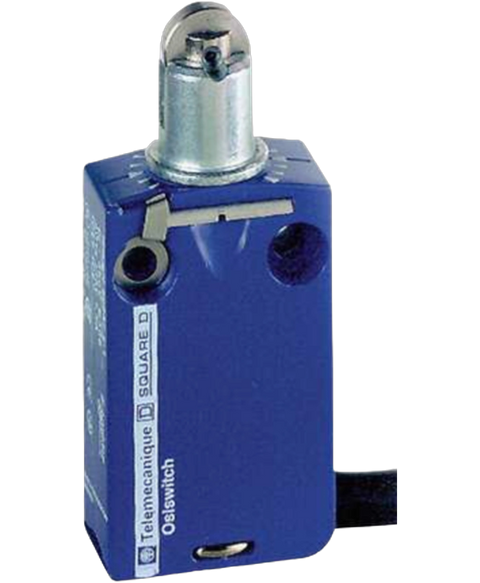

Telemecanique XCMD2102L3
Limit switch, 240VAC, 10A, 1no + 1nc, snap action, steel roller plunger head, 3 m cable length, IP66,67,68
This Telemecanique XCMD2102L3 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches range and is referenced internally as PartLogic SKU PL26805632975.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Body Material | Zinc |
| Cable Length | 2.98704 m |
| Current Rating | 6 A |
| Electrical Life | 5 Mcycles |
| Housing Material | Metal |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 240 V |
| Max Voltage Rating (DC) | 250 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -25 °C |
| Mount | Cable, Screw |
| Operating Force | 50 mN |
| Orientation | Straight |
| Ratings | IP66 |
| RoHS | Compliant |
| Termination | Connector |
| Throw Configuration | DPST, SPDT |
| Voltage Rating (AC) | 240 V |
| Voltage Rating (DC) | 250 V |
