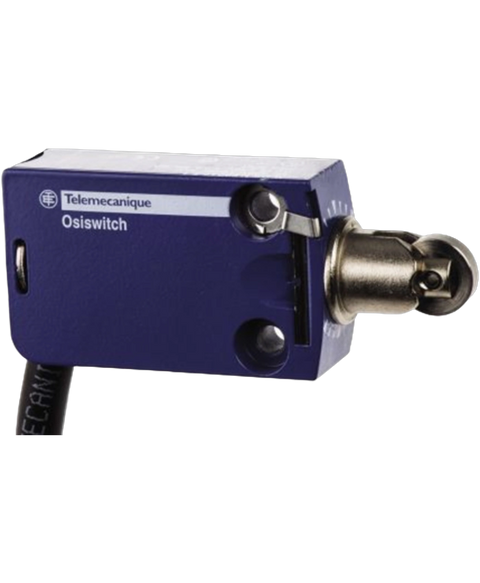

Telemecanique XCMD2102L1
Limit switch, xcmd series, steel roller plunger, 2-pole, 1 NC + 1 NO snap-action contacts, spring return operator, 1 m cable, lateral approach
This Telemecanique XCMD2102L1 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches range and is referenced internally as PartLogic SKU PL26801431370.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Cable Length | 975.36 mm |
| Current Rating | 6 A |
| Depth | 16 mm |
| Electrical Life | 5 Mcycles |
| Height | 50 mm |
| Housing Material | Metal |
| Length | 30 mm |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 240 V |
| Max Voltage Rating (DC) | 250 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -25 °C |
| Mount | Cable, Screw |
| Operating Supply Voltage | 240 V |
| Orientation | Straight |
| Ratings | IP66 |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Termination | Cable |
| Throw Configuration | DP, DPST, SPDT |
| Voltage Rating (AC) | 240 V |
| Voltage Rating (DC) | 250 V |
| Width | 30 mm |
