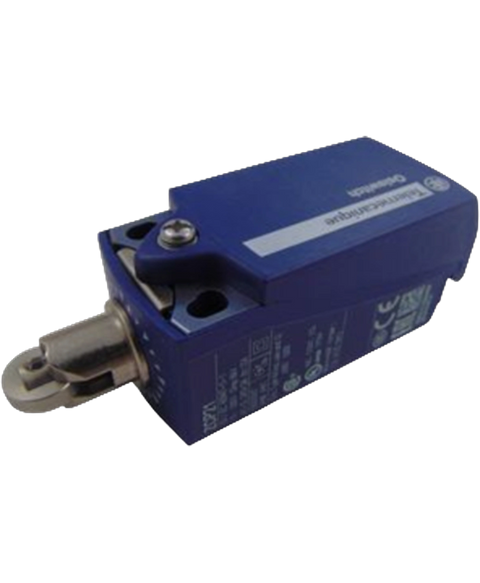

Telemecanique XCKP2118G11
Limit switch, general purpose, roller lever actuator, dp, NC,NO, 240VAC, screw terminal, IP66, IP67 ipr rating
This Telemecanique XCKP2118G11 is supplied brand new by PartLogic for machine guarding, safety circuits, operator protection, production equipment and industrial compliance applications. It forms part of our Industrial automation > Safety > Limit switches range and is referenced internally as PartLogic SKU PL26805525017.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Body Material | Plastic |
| Current Rating | 10 A |
| Depth | 30 mm |
| Height | 65 mm |
| Housing Material | Plastic |
| Length | 31 mm |
| Max Operating Temperature | 70 °C |
| Max Voltage Rating (AC) | 240 V |
| Max Voltage Rating (DC) | 250 V |
| Mechanical Life | 10 Mcycles |
| Min Operating Temperature | -25 °C |
| Mount | Cable, Screw |
| Operating Force | 100 mN |
| Orientation | Right Angle |
| Ratings | IP66 |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | DP, DPST, SPDT |
| Voltage Rating (AC) | 240 V |
| Voltage Rating (DC) | 250 V |
| Width | 31 mm |
