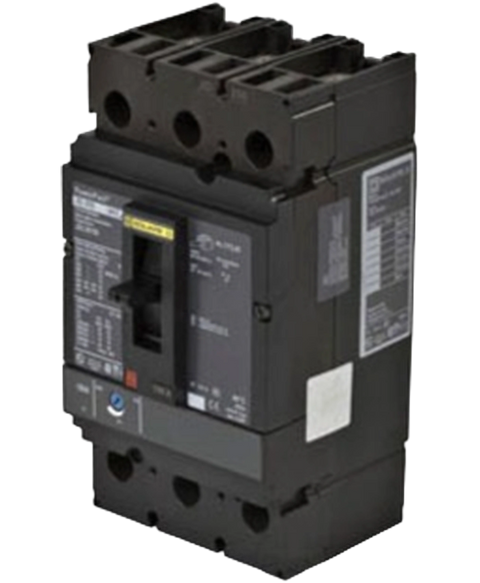

Square D JDL36250
The JDL36250 from Schneider Electric is a molded case circuit breaker (MCCB) designed to manage electrical faults effectively. This unit has a rated current of 250A and operates as a three-pole device, featuring a toggle control mechanism.
This Square D JDL36250 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers > Molded case range and is referenced internally as PartLogic SKU PL26805558461.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | MCCB (Molded Case Circuit Breaker) |
| Product Line | PowerPact |
| Part Number | JDL36250 |
| UPC | 785901839941 |
| Weight | 2.00 lbs (0.91 kg) |
| Rated Current | 250A |
| Poles | 3 |
| Control Type | Toggle |
| Breaking Capacity | 25 kA at 240V AC, 18 kA at 480V AC, 14 kA at 600V AC, 20 kA at 250V DC |
| Operating Voltage | 600V AC (50/60 Hz) |
| Frequency | 50/60 Hz |
| Service Breaking Capacity | 25 kA at 220/240V AC, 18 kA at 380/440/415V AC, 14 kA at 500/525V AC, 20 kA at 250V DC, 20 kA at 500V DC |
| Impulse Withstand Voltage | 8 kV |
| Trip Unit | Thermal-magnetic |
| Magnetic Trip Setting | 2500A |
| Continuous Current Rating | 80% of nominal |
| Insulation Voltage | 750V |
| Mounting | Unit-mount with lugs |
| Protection Rating | IP40 (front), Pollution Degree 3 |
| Brand | Schneider Electric |
