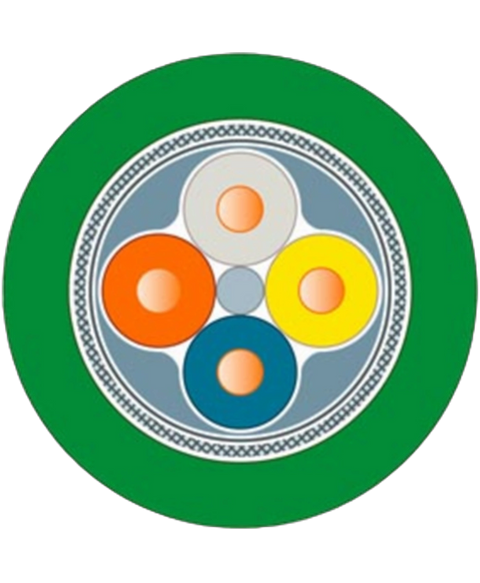

Product image for illustrative purposes only. Actual item may vary.
Siemens 6XV1840-2AH10
Siemens's 6XV1840-2AH10 is an industrial Ethernet cable designed for reliable data transmission. It features an impedance of 100 Ohms and is rated for an operating voltage of 80 V, making it suitable for various applications.
This Siemens 6XV1840-2AH10 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet > Cables range and is referenced internally as PartLogic SKU PL26801423566.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$741.23
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6XV1840-2AH10 |
| suitability for use | Standard cable with rigid cores for fast installation |
| cable designation | SF/UTP, 2YY (ST) CY 2x2x0,64/1,5-100 GN |
| wire length | sold by the meter |
| at 10 MHz / maximum | 0.052 dB/m |
| at 100 MHz / maximum | 0.195 dB/m |
| at 1 MHz ... 100 MHz | 100 Ω0.5 dB/m |
| of the characteristic impedance at 1 MHz … 100 MHz | 15 % |
| transfer impedance per length / at 10 MHz | 10 mΩ/m |
| loop resistance per length / maximum | 115 mΩ/m |
| RMS value | 80 V |
| NVP value in percent | 69 % |
| number of electrical cores | 4 |
| design of the shield | SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires |
| type of electrical connection / FastConnect | Yes |
| of AWG22 insulated conductor | 0.64 mm |
| of inner conductor | 0.64 mm |
| of the wire insulation | 1.5 mmpolyethylene (PE) |
| of the inner sheath of the cable | 3.9 mmPVC |
| of cable sheath | 6.5 mmPVCgreen |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.2 mm |
| of the insulation of data wires | white/yellow/blue/orange |
| with single bend / minimum permissible | 19.5 mm |
| with multiple bends / minimum permissible | 49 mm |
| tensile load / maximum | 150 N |
| weight per length | 61 kg/km |
| during operation | -40 ... +75 °C0.02 kg |
| during storage | -40 ... +75 °C |
| during transport | -40 ... +75 °C |
| during installation | -40 ... +60 °C |
| fire behavior | flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4) |
| class of burning behaviour / according to EN 13501-6 | Eca |
| to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) |
| to grease | Conditional resistance |
| to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
| halogen-free | No |
| PoE capability | Yes |
| PoE+ capability | Yes |
| silicon-free | Yes |
| with 100BaseTX | 100 m |
| at AC / core-to-core | 2000 V |
| at AC / core shield | 2000 V |
| UL/ETL listing / 300 V Rating | Yes; c(ETL)us / CMG / (ETL)us PLTC/ ITC / Sun Res |
| UL/ETL style / 600 V Rating | Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2 |
| EAC approval | Yes |
| CE marking | Yes |
| RoHS conformity | Yes |
| standard for structured cabling | Cat5e |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| American Bureau of Shipping Europe Ltd. (ABS) | No |
| French marine classification society (BV) | No |
| Det Norske Veritas (DNV) | No |
| Germanische Lloyd (GL) | No |
| Lloyds Register of Shipping (LRS) | No |
| Nippon Kaiji Kyokai (NK) | No |
| Polski Rejestr Statkow (PRS) | No |
| Environmental Product Declaration | Yes |
| total | 0.9 kg |
| during manufacturing | 0.81 kg |
| after end of life | 0.07 kg |
