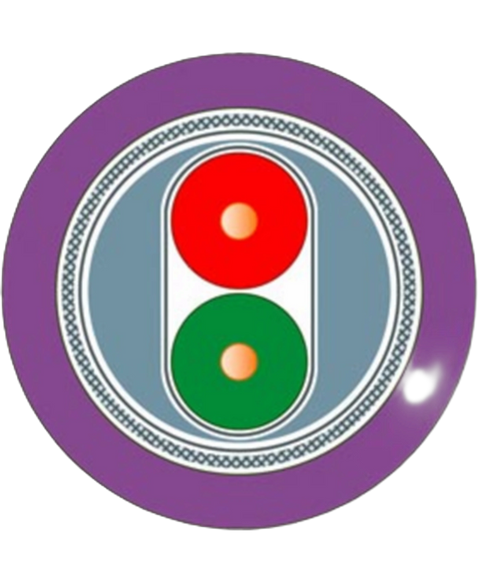

Product image for illustrative purposes only. Actual item may vary.
Siemens 6XV1830-0EH10
The 6XV1830-0EH10 from Siemens is a standard Profibus FC cable designed to deliver reliable connectivity. This two-core cable operates with a rated impedance of 150 Ohms and is suitable for voltages up to 100V RMS.
This Siemens 6XV1830-0EH10 is supplied brand new by PartLogic for machine networks, control system connectivity, data transfer, automation panels and maintenance applications. It forms part of our Industrial automation > Networking > Industrial ethernet > Cables range and is referenced internally as PartLogic SKU PL26805557960.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$414.63
(inc. GST)
In Stock
| Technical Product Detail Page | https://i.siemens.com/1P6XV1830-0EH10 |
| suitability for use | Standard cable specially designed for fast, permanent installation |
| cable designation | 02YSY (ST) CY 1x2x0,64/2,55-150 VI KF 40 FR |
| wire length | sold by the meter |
| at 9.6 kHz / maximum | 0.0025 dB/m |
| at 38.4 kHz / maximum | 0.004 dB/m |
| at 4 MHz / maximum | 0.022 dB/m |
| at 16 MHz / maximum | 0.042 dB/m |
| rated value | 150 Ω |
| at 9.6 kHz | 270 Ω |
| at 38.4 kHz | 185 Ω |
| at 3 MHz … 20 MHz | 150 Ω |
| of the characteristic impedance at 9.6 kHz | 10 % |
| of the characteristic impedance at 38.4 kHz | 10 % |
| of the characteristic impedance at 3 MHz … 20 MHz | 10 % |
| loop resistance per length / maximum | 110 mΩ/m |
| shield resistance per length / maximum | 9.5 Ω/km |
| capacity per length / at 1 kHz | 28.5 pF/m |
| RMS value | 80 V |
| number of electrical cores | 2 |
| design of the shield | Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires |
| type of electrical connection / FastConnect | Yes |
| of inner conductor | 0.65 mm |
| of the wire insulation | 2.55 mmpolyethylene (PE) |
| of the inner sheath of the cable | 5.4 mmPVC |
| of cable sheath | 8 mmPVCViolet |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.4 mm |
| of the insulation of data wires | red/green |
| with single bend / minimum permissible | 37.5 mm |
| with multiple bends / minimum permissible | 75 mm |
| tensile load / maximum | 100 N |
| weight per length | 78 kg/km |
| during operation | -40 ... +75 °C0.02 kg |
| during storage | -40 ... +75 °C |
| during transport | -40 ... +75 °C |
| during installation | -40 ... +75 °C |
| fire behavior | flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4) |
| class of burning behaviour / according to EN 13501-6 | Eca |
| to mineral oil | oil resistant according to IEC 60811-2-1 (4 h / 70°C) |
| to grease | Conditional resistance |
| to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
| halogen-free | No |
| silicon-free | Yes |
| UL/ETL listing / 300 V Rating | Yes; c(ETL)us, CMG / (ETL)us CL3 / Sun Res |
| UL/ETL style / 600 V Rating | Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2 |
| EAC approval | Yes |
| CE marking | Yes |
| UL approval | Yes |
| RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| American Bureau of Shipping Europe Ltd. (ABS) | No |
| French marine classification society (BV) | No |
| Det Norske Veritas (DNV) | No |
| Germanische Lloyd (GL) | No |
| Lloyds Register of Shipping (LRS) | No |
| Nippon Kaiji Kyokai (NK) | No |
| Polski Rejestr Statkow (PRS) | No |
| Environmental Product Declaration | Yes |
| total | 0.92 kg |
| during manufacturing | 0.8 kg |
| after end of life | 0.1 kg |
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| to web page: SiePortal | https://sieportal.siemens.com/ |
| to website: Image database | https://www.automation.siemens.com/bilddb |
| to website: CAx-Download-Manager | https://www.siemens.com/cax |
| to website: Industry Online Support | https://support.industry.siemens.com |
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
