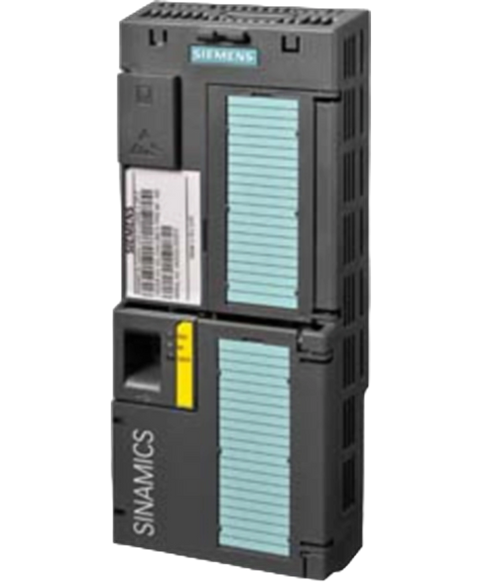

Siemens 6SL3244-0BB13-1FA0
The 6SL3244-0BB13-1FA0 model is a standard inverter drive offered by Siemens within the SINAMICS G120 series. It features dimensions of 93.00 x 240.00 x 68.00 mm and has a weight of 0.490 kg. The product is designed to operate with a power loss of 5.50 W and a maximum power consumption of 0.50 A. It requires an external DC power supply ranging from 20 to 29 V.
This Siemens 6SL3244-0BB13-1FA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805549137.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Standard Inverter Drive |
| Product Line | SINAMICS G120 |
| Part Number | 6SL3244-0BB13-1FA0 |
| UPC | 040892951202 |
| Weight | 0.25 lbs (0.11 kg) |
| Packaging Dimensions | 93.00 x 240.00 x 68.00 mm |
| Relay Changeover Contacts | 2 |
| Switching Levels | 0→1 at 11 V, 1→0 at 5 V |
| Conductor Cross-Section | 0.05-1.50 mm² (30-16 AWG) |
| Power Loss | 5.50 W |
| Max. Power Consumption | 0.50 A |
| External Power Supply | DC 20-29 V |
| Ambient Temperature Range | 0 to +50 °C |
| Protection Degree | IP20 |
| Analog Inputs/Outputs | 2 Analog Inputs (AI), 2 Analog Outputs (AQ) |
| Digital Inputs/Outputs | 6 Digital Inputs (DI), 3 Digital Outputs (DQ) |
| Interfaces | PROFINET interface, USB and SD/MMC interface |
| Safety Integrated Functions | STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed), SSM (Safe Speed Monitor), SDI (Safe Direction Indicator) |
| Brand | Siemens |
