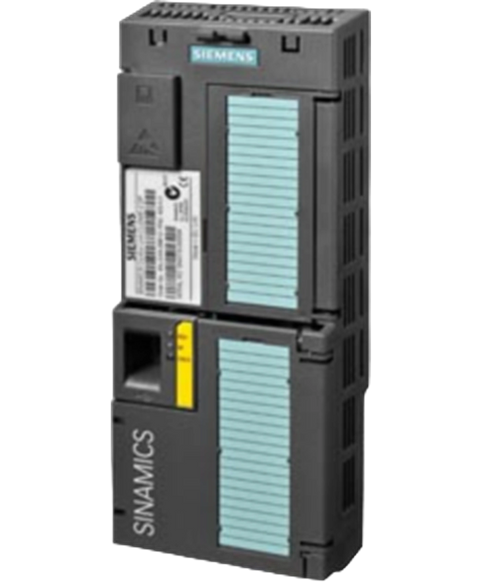

Siemens 6SL3244-0BB12-1PA1
The Siemens 6SL3244-0BB12-1PA1 serves as a control unit within the SINAMICS G120 series, operating at a nominal DC voltage of 24 volts. This unit is designed to support PROFIBUS DP communication and features multiple input,output options.
This Siemens 6SL3244-0BB12-1PA1 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26801385269.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Control Unit |
| Product Line | SINAMICS G120 |
| Part Number | 6SL3244-0BB12-1PA1 |
| UPC | 040892792621 |
| Weight | 0.50 lbs (0.23 kg) |
| Operating Voltage | DC 24 V |
| Max. Power Consumption | 0.50 A |
| Power Loss | 5.50 W |
| Communication | PROFIBUS DP |
| Digital Inputs | 6 |
| Digital Outputs | 2 |
| Analog/Digital Inputs | 2 (Differential Input) |
| Analog Outputs | 2 (Non-Isolated Output) |
| Ambient Operating Temperature | -10 ... 55 °C |
| Ambient Storage Temperature | -40 ... 70 °C |
| Relative Humidity | 95% |
| Conductor Cross-Section | 0.05 ... 1.50 mm² (AWG 28 ... AWG 16) |
| Degree of Protection | IP20 |
| Brand | Siemens |
