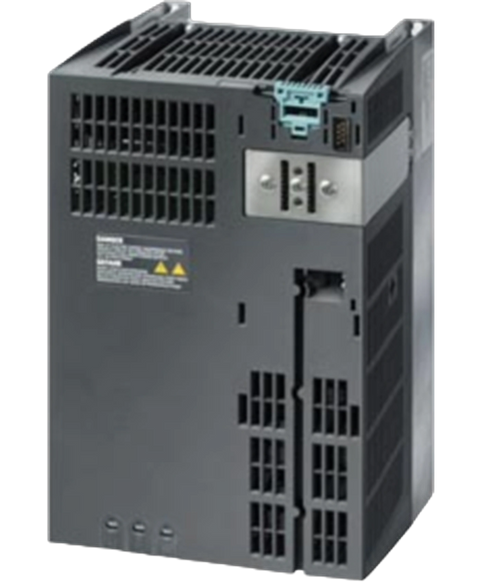

Siemens 6SL3224-0BE31-1UA0
The Siemens 6SL3224-0BE31-1UA0 is a power module part of the SINAMICS series. It operates on a three-phase system with input voltage ranging from 380 to 480 volts AC, and includes an integrated braking chopper for enhanced functionality.
This Siemens 6SL3224-0BE31-1UA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805532253.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3224-0BE31-1UA0 |
| UPC | 662643434439 |
| Weight | 0.19 lbs (0.09 kg) |
| Product | Power Modules |
| Braking Chopper | Integrated |
| Min. Input Voltage | 380 V |
| Max. Input Voltage | 480 V |
| Voltage Type | AC |
| Number of Phases | 3 |
| Network Frequency | 47-63 Hz |
| High Overload | 11 kW at 200% for 3 seconds |
| Low Overload | 15 kW at 150% for 3 seconds |
| Degree of Protection | IP20 |
| Brand | Siemens |
