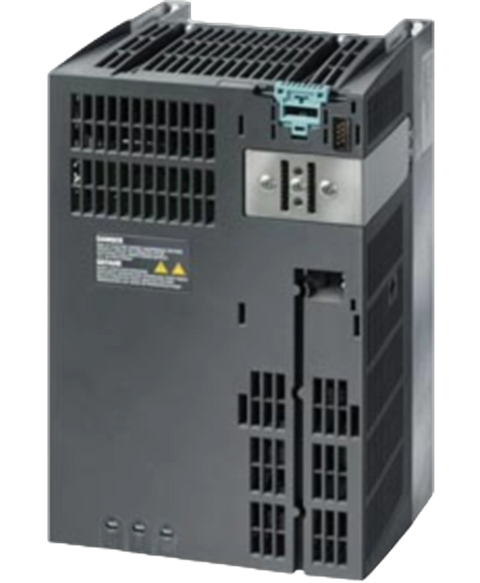

Siemens 6SL3224-0BE27-5AA0
The Siemens 6SL3224-0BE27-5AA0 power module from the SINAMICS G120 series is designed for versatile applications. It accommodates an input voltage range of 380 to 480 VAC with a tolerance of ±10% and operates efficiently within an input frequency spectrum of 47 to 63 Hz.
This Siemens 6SL3224-0BE27-5AA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805428601.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Power Module |
| Product Line | SINAMICS G120 |
| Part Number | 6SL3224-0BE27-5AA0 |
| UPC | 662643434408 |
| Weight | 3.19 lbs (1.45 kg) |
| Input Voltage | 380-480 VAC ±10% |
| Input Frequency | 47-63 Hz |
| Input Current | 31.5 A |
| Rated Current (Low Output) | 25 A |
| Maximum Output Current | 38 A |
| Number of Phases | 3 AC |
| Protection Class | IP20 |
| Rated Power (Low Output) | 11 kW / 15 hp |
| Rated Current (High Output) | 19 A |
| Output Frequency (V/f control) | 0-550 Hz |
| Pulse Frequency | 4 kHz |
| Rated Current with Line Reactor | 26 A |
| Rated Power (High Output) | 7.5 kW / 10 hp |
| Rated Power | 7.5 kW |
| Brand | Siemens |
