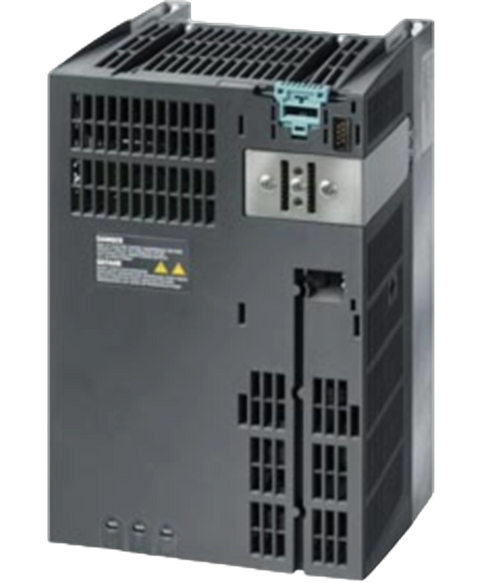

Siemens 6SL3224-0BE25-5UA0
The Siemens 6SL3224-0BE25-5UA0 Power Module is an integral component of the SINAMICS G120 series. It provides effective power management, rated at 5.5 kW, within the range of 380 to 480 volts AC for a robust 3-phase supply.
This Siemens 6SL3224-0BE25-5UA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805602906.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS G120 |
| Part Number | 6SL3224-0BE25-5UA0 |
| UPC | 662643434392 |
| Weight | 3.19 lbs (1.45 kg) |
| Name | Power Module |
| Power Supply | 380-480 V, 3-phase, ±10% |
| Frequency | 47-63 Hz |
| Rated Power | 5.5 kW |
| Ambient Temperature Range (Operating) | -10°C to +50°C |
| Enclosure Type | IP20 |
| Cooling Method | Air-cooled |
| Communication | PROFIBUS, Ethernet |
| Braking System | Integrated braking chopper |
| Output Characteristics | Sinusoidal PWM |
| Overload Protection | Built-in overload protection |
| Mounting Type | DIN rail or panel mounting |
| Brand | Siemens |
