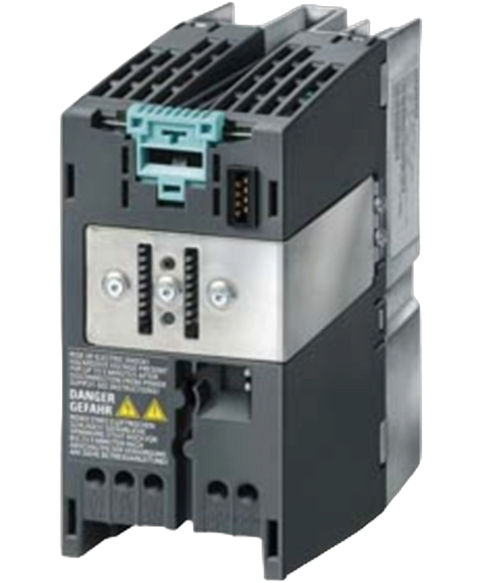

Siemens 6SL3224-0BE21-5UA0
The Siemens 6SL3224-0BE21-5UA0, categorized under the SINAMICS PM240 power module series, operates efficiently as a three-phase AC drive. It caters to voltages between 380 V and 480 V with a permissible variation of ±10% and has an input current rating of 4.30 A when used with a line reactor, increasing to 4.90 A without one. The device is capable of delivering a rated power output of 1.50 kW, which is roughly equivalent to 2 horsepower.
This Siemens 6SL3224-0BE21-5UA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805549631.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3224-0BE21-5UA0 |
| UPC | 662643434316 |
| Weight | 3.00 lbs (1.36 kg) |
| Series | AC Drives |
| Product Classification | SINAMICS PM240 Power Module |
| Input Power Phase | Three-phase AC |
| Operating Voltage Range | 380 V to 480 V ±10% |
| Supported Line Frequency | 47 Hz to 63 Hz |
| Input Current Rating | 4.30 A (with line reactor) / 4.90 A (without line reactor) |
| Output Configuration | Three-phase AC |
| Output Voltage Levels | 400 V (IEC standard) / 480 V (NEC standard) |
| Rated Power Capacity | 1.50 kW (approx. 2 hp) |
| Continuous Output Current | 4.10 A |
| Maximum Peak Current | 8.20 A |
| Switching Frequency | 4 kHz |
| Frequency Range for Vector Control | 0 Hz to 200 Hz |
| Frequency Range for V/f Control | 0 Hz to 550 Hz |
| Energy Efficiency | 97% |
| Noise Emission Level | 45 dB at 1-meter distance |
| Brand | Siemens |
