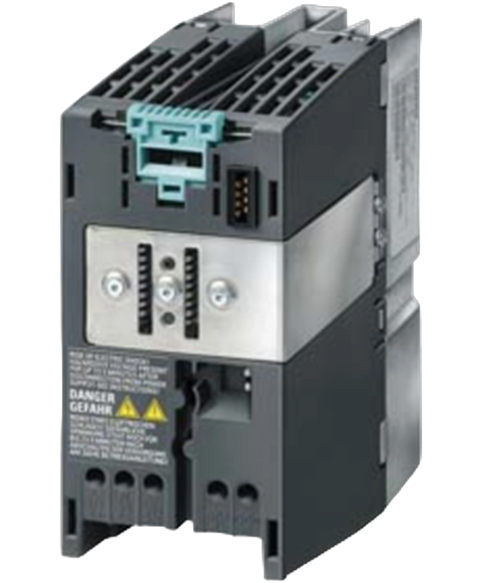

Siemens 6SL3224-0BE17-5UA0
The Siemens 6SL3224-0BE17-5UA0 is a component from the SINAMICS G120 series designed for use in various industrial applications. This unit operates within a 3-phase system, handling an input voltage range of 380 to 480 V AC with a tolerance of ±10%, ensuring versatility in connection to different power sources.
This Siemens 6SL3224-0BE17-5UA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26805585925.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS G120 |
| Part Number | 6SL3224-0BE17-5UA0 |
| UPC | 662643434293 |
| Weight | 2.56 lbs (1.16 kg) |
| Input Voltage Range | 380 to 480 V AC ±10% |
| Input Frequency | 47 to 63 Hz |
| Phase | 3-phase |
| Rated Power | 0.75 kW |
| Overload Capacity | 150% for 57 seconds |
| Cooling Method | Internal air cooling |
| Cooling Air Requirement | 0.005 m³/s (0.177 ft³/s) |
| Power Factor | 0.85 |
| Efficiency | 97% |
| Power Loss | 0.10 kW |
| Relative Humidity | 95% RH |
| Height | 173 mm |
| Width | 73 mm |
| Depth | 145 mm |
| Degree of Protection | IP20 |
| Brand | Siemens |
