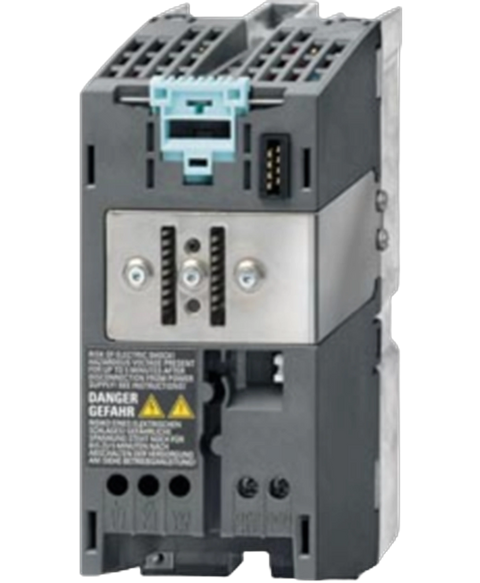

Siemens 6SL3210-1SB12-3UA0
Siemens' 6SL3210-1SB12-3UA0 is a compact PM340 power module designed for indoor, single-phase AC applications. It can handle input voltages from 200V to 240V and provides a stable nominal output current of 2.3 A.
This Siemens 6SL3210-1SB12-3UA0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL27056707087.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3210-1SB12-3UA0 |
| UPC | 662643259124 |
| Weight | 12.00 lbs (5.44 kg) |
| Device Type | PM340 Power Module (Compact, Single-Phase AC) |
| Input Voltage Range | 200–240 V ± 10% |
| Nominal Output Current (In) | 2.3 A |
| Continuous Load Current (IH) | 2.0 A |
| Short-Term Current for S6 (40%) | 3.3 A |
| Maximum Current (Imax) | 4.6 A |
| Power Output | 0.37 kW |
| Operating Pulse Frequency | 4 kHz |
| Energy Dissipation | 0.075 kW |
| Air Cooling Requirement | 0.005 m³/s |
| Noise Level at 1 m Distance | \u003C 45 dB |
| Input Current (with/without Reactor) | 4 A / 6 A |
| Motor Cable Length Limit | 50 m (shielded) / 75 m (unshielded) |
| Enclosure Rating | IP20 or IPXXB |
| Mass | 1.3 kg |
| Brand | Siemens |
