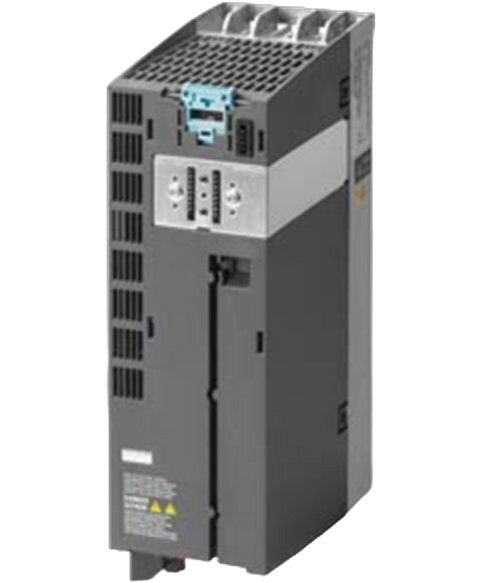

Siemens 6SL3210-1PE16-1UL1
The Siemens 6SL3210-1PE16-1UL1 power module is engineered for robust performance in industrial environments. It supports a voltage input range of 380–480 V AC and is well-suited for conditions operating between 47 and 63 Hz.
This Siemens 6SL3210-1PE16-1UL1 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26899274754.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3210-1PE16-1UL1 |
| UPC | 887621778897 |
| Weight | 4.00 lbs (1.81 kg) |
| Product Name | Power Module |
| Input Voltage | 380–480 V AC ±10% |
| Input Frequency | 47–63 Hz |
| Output Voltage | 3-phase 400 V AC |
| Output Current (LO) | 5.9 A |
| Output Current (HO) | 4.1 A |
| Max. Output Current | 8.9 A |
| Power Loss | 0.10 kW |
| Efficiency | 96% |
| Protection Rating | IP20 |
| Length | 196 mm |
| Width | 73 mm |
| Depth | 165 mm |
| Brand | Siemens |
