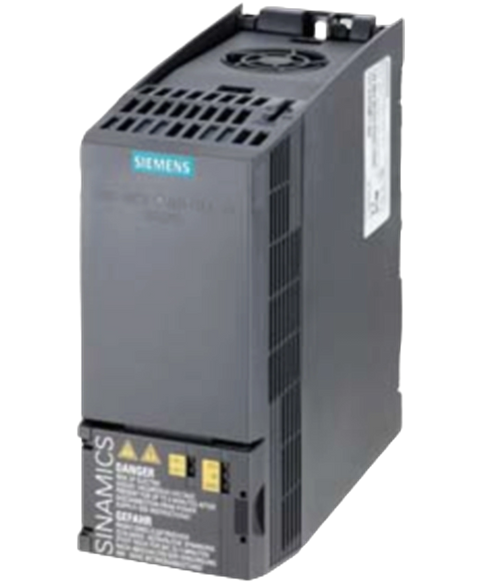

Siemens 6SL3210-1KE15-8AF2
The Siemens 6SL3210-1KE15-8AF2 is a variable frequency drive designed for AC motor control. Suitable for use with a 380–480V AC input, this drive offers a solid output power of 2.2 kW at low overload conditions.
This Siemens 6SL3210-1KE15-8AF2 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26801716629.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Variable Frequency Drive (AC Inverter) |
| Product Line | SINAMICS |
| Part Number | 6SL3210-1KE15-8AF2 |
| UPC | 804766249655 |
| Weight | 1.44 lbs (0.65 kg) |
| Input Voltage Range | 380–480 V AC (±10% / -20%), 3-phase |
| Input Frequency Range | 47–63 Hz |
| Output Voltage Rating | 400 V IEC / 480 V NEC (3-phase AC) |
| Rated Output Power (Low Overload) | 2.2 kW (3.0 hp) |
| Rated Output Power (High Overload) | 1.5 kW (2.0 hp) |
| Input Current (Low Overload) | 7.4 A |
| Output Current (Low Overload) | 5.6 A |
| Maximum Output Current | 8.2 A |
| Overload Capacity (Low Overload) | 150% for 3 sec, 110% for 57 sec (300 sec cycle) |
| Overload Capacity (High Overload) | 200% for 3 sec, 150% for 57 sec (300 sec cycle) |
| Power Factor Range | 0.70–0.85 |
| Efficiency | 97% |
| Integrated Filter Classification | Class A |
| Communication Interfaces | PROFINET, EtherNet/IP |
| Brand | Siemens |
