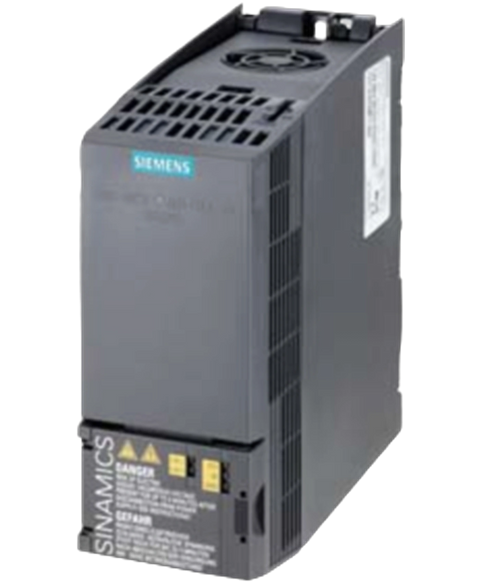

Siemens 6SL3210-1KE12-3AF2
The Siemens 6SL3210-1KE12-3AF2 is a versatile AC frequency converter within the SINAMICS G120 series. Operating effectively within a voltage range of 380 to 480 Volts AC, it supports three-phase systems and functions at frequencies between 47 Hz and 63 Hz. This device is capable of managing rated currents from 2.50 to 2.90 Amps, ensuring reliability in diverse applications.
This Siemens 6SL3210-1KE12-3AF2 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives range and is referenced internally as PartLogic SKU PL26801467753.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS G120 |
| Part Number | 6SL3210-1KE12-3AF2 |
| UPC | 804766249525 |
| Weight | 1.44 lbs (0.65 kg) |
| Part | AC Frequency Converter |
| Voltage | 380 to 480 Volts AC |
| Frequency | 47 to 63 Hz |
| Rated Current | 2.90 to 2.50 Amps |
| Phases | Three-phase |
| Pulse Frequency | 4 kHz |
| Digital Inputs | 6 |
| Digital Outputs | 1 |
| Power Loss | 39 W |
| Filter Class | Class A |
| Communication | PROFINET and EtherNet/IP |
| Cooling | Air cooling using integrated fan |
| Operating Temperature | -10 to 40 degrees Celsius |
| Degree of Protection | IP 20 / UL open type |
| Brand | Siemens |
