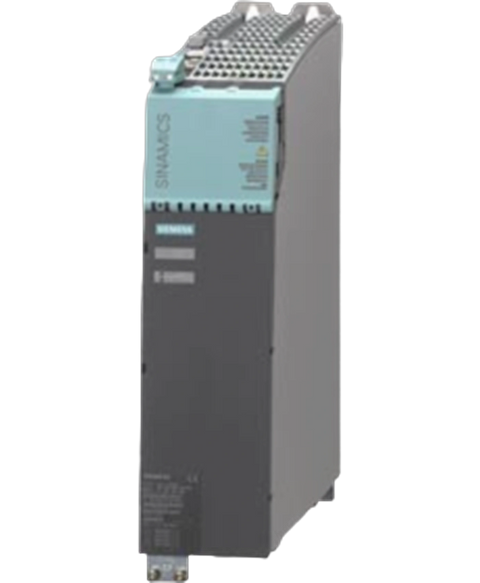

Siemens 6SL3130-7TE23-6AA3
The Siemens 6SL3130-7TE23-6AA3 is a component of the SINAMICS S120 Active Line Module series that operates on a 3-phase AC input voltage ranging from 380 to 480 volts. This module boasts a rated power of 36 kW and is capable of reaching up to 70 kW in maximum output conditions.
This Siemens 6SL3130-7TE23-6AA3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805674225.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | SINAMICS S120 Active Line Module |
| Product Line | SINAMICS S120 |
| Part Number | 6SL3130-7TE23-6AA3 |
| UPC | 662643433241 |
| Weight | 4.88 lbs (2.21 kg) |
| Input Voltage | 3-phase AC, 380-480 V |
| Input Frequency | 47-63 Hz |
| Output Voltage | DC 600 V |
| Output Current | 60 A (rated), 117 A (maximum) |
| Power Rating | 36 kW (rated), 70 kW (maximum) |
| DC Link Capacitance | 1,410 µF |
| Short-Circuit Strength | 65 kA |
| Line Power Factor (Active Mode) | 1 (fundamental), adjustable reactive current setpoint |
| Line Power Factor (Smart Mode) | 0.65-0.90 (total), minimal 0.96 (fundamental) |
| Cooling Method | Internal air cooling with integrated fan |
| Degree of Protection | IP20 / UL open type |
| Ambient Temperature Range | 0-40 °C (32-104 °F) |
| Maximum Installation Altitude | 1,000 m (3,280.84 ft) |
| Sound Pressure Level | 65 dB |
| Brand | Siemens |
