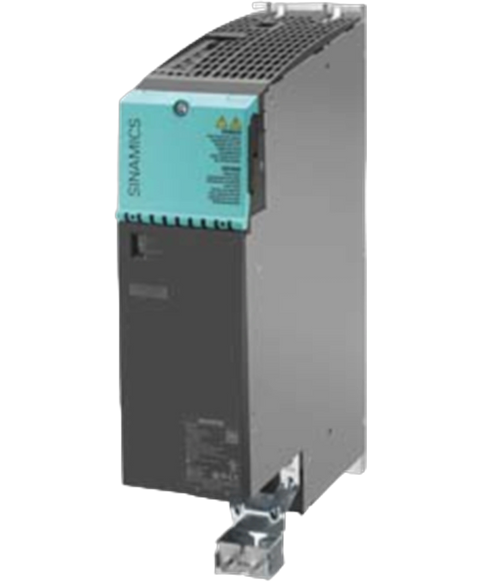

Siemens 6SL3120-2TE21-8AC0
The Siemens 6SL3120-2TE21-8AC0 is a double-motor module power unit designed for efficient motor control within the SINAMICS series. It is characterized by robust performance capabilities and a compact book-size format.
This Siemens 6SL3120-2TE21-8AC0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805679488.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3120-2TE21-8AC0 |
| UPC | 804766208270 |
| Weight | 15.00 lbs (6.80 kg) |
| Module Type | Double-motor module, booksize |
| Physical Dimensions | 380 mm x 270 mm x 100 mm (14.96 in x 10.63 in x 3.94 in) |
| Typical Power Loss | 0.28 kW |
| Maximum Power Loss | 0.35 kW |
| Nominal Output Current | 2 x 18.0 A |
| DC Voltage Range for Link | 510 V to 720 V DC |
| Rated Base Load Current | 2 x 15.3 A |
| Peak Current for S6 Operation (40%) | 2 x 36.0 A |
| Switching Frequency | 4.00 kHz |
| Maximum Length of Motor Cables | 70 m (with shielding), 100 m (without shielding) |
| Cooling Type | Integrated air cooling |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Altitude for Installation | Up to 1000 m without performance reduction |
| Compliance with Safety Standards | SIL 2 (IEC 61508), PL d (EN ISO 13849-1), Category 3 (EN ISO 13849-1) |
| Protection Rating | IP20 / UL open type |
| Link Capacitance | 705 μF |
| Brand | Siemens |
