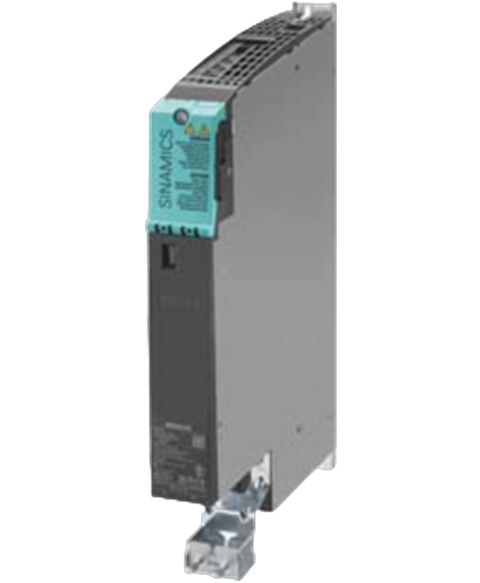

Siemens 6SL3120-2TE21-0AD0
The Siemens 6SL3120-2TE21-0AD0 double-motor module is a robust component in the SINAMICS series. It is designed to handle dual outputs with a base current rating of 12.0 A and a maximum of 27.0 A, ensuring substantial power delivery across various applications.
This Siemens 6SL3120-2TE21-0AD0 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805610966.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Double Motor Module |
| Product Line | SINAMICS |
| Part Number | 6SL3120-2TE21-0AD0 |
| UPC | 804766199493 |
| Weight | 15.00 lbs (6.80 kg) |
| Output Current | 2 x 12.0 A (Base); 2 x 27.0 A (Max) |
| DC Link Voltage | 510–720 V DC |
| Rated Output Power | 2 x 4.1 kW (Base); 2 x 4.8 kW (Rated) |
| Pulse Frequency | 4.00 kHz |
| DC Link Capacitance | 220 µF |
| Output Frequency | Up to 650 Hz for servo control |
| Ambient Temperature Range | 0–40 °C (32–104 °F) |
| Cooling Method | Internal air cooling |
| Motor Cable Length (Max) | 50 m (shielded); 75 m (unshielded) |
| Installation Altitude | Up to 1000 m without derating |
| Power Loss (Typical/Max) | 0.15–0.19 kW |
| Degree of Protection | IP20 / UL open type |
| Standards Compliance | SIL 2 (IEC 61508), PL d (EN ISO 13849-1) |
| Physical Dimensions | 380 x 270 x 50 mm; Weight: 4.7 kg |
| Brand | Siemens |
