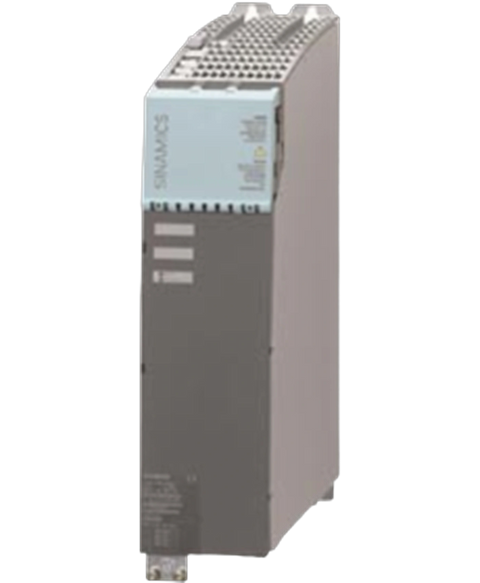

Siemens 6SL3120-2TE21-0AA3
The 6SL3120-2TE21-0AA3 from Siemens is a dual-motor drive module within the SINAMICS series. Its voltage output range allows for up to 0.717 of the DC-link voltage, allowing it to efficiently handle power requirements.
This Siemens 6SL3120-2TE21-0AA3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805547921.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Line | SINAMICS |
| Part Number | 6SL3120-2TE21-0AA3 |
| UPC | 662643432978 |
| Weight | 15.00 lbs (6.80 kg) |
| Product Classification | Dual motor drive module |
| Voltage Output Range | 0 to 0.717 of the DC-link voltage |
| Nominal Current per Channel | 2 × 9 amps |
| Continuous Operating Current | 2 × 7.7 amps |
| Short-term Overload Current (40%) | 2 × 10 amps |
| Maximum Instantaneous Current | 2 × 18 amps |
| Device Mass | 5.5 kilograms |
| Cooling System Design | Built-in air circulation fan |
| Highest Operational Temperature | 40°C normal, 55°C with reduced capacity |
| Energy Loss During Operation | 187.6 watts |
| Auxiliary Power Supply Voltage | 24 volts DC (20.4 to 28.8 volts range) |
| Auxiliary Power Supply Current Draw | 1.15 amps DC |
| DC Power Bus Voltage Range | 510 to 720 volts DC |
| Maximum DC-Link Current Capacity | 22 amps DC |
| Capacitance of the DC-Link Circuit | 220 μF |
| Brand | Siemens |
