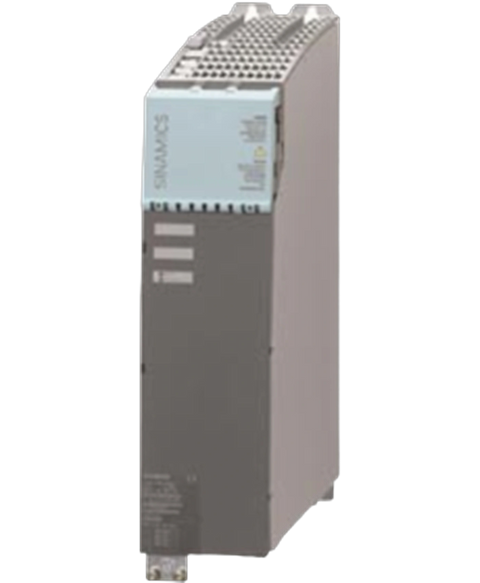

Siemens 6SL3120-2TE15-0AA3
The Siemens 6SL3120-2TE15-0AA3 is classified as a double motor module. It delivers a nominal output current of 2 × 5 A and features output management options for varied operational demands.
This Siemens 6SL3120-2TE15-0AA3 is supplied brand new by PartLogic for motor control, speed regulation, machinery automation, production equipment and industrial maintenance applications. It forms part of our Industrial automation > Drives > Ac drives > Sinamics s120 range and is referenced internally as PartLogic SKU PL26805657188.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Siemens |
| Product Type | Double Motor Module |
| Product Line | SINAMICS |
| Part Number | 6SL3120-2TE15-0AA3 |
| UPC | 662643432961 |
| Weight | 15.00 lbs (6.80 kg) |
| Output Current | 2 × 5 A (Nominal); 2 × 4.3 A (Base Load); 2 × 6 A (40% Intermittent); 2 × 10 A (Peak) |
| Output Voltage Range | 0 to 0.717 times the DC-link voltage |
| Power Supply Voltage | 24 VDC (Operating Range: 20.4 to 28.8 V) |
| Overvoltage Threshold | 820 VDC with ±2% Tolerance |
| Undervoltage Threshold | 380 VDC with ±2% Tolerance |
| Electronics Power Consumption | 1.15 A at 24 VDC |
| Unit Power Rating | 2 × 2.7 kW (Nominal); 2 × 2.3 kW (Base Load) |
| Total Power Dissipation | 132.6 Watts |
| Cooling System | Air Cooling Using Internal Fan |
| Maximum Operating Temperature | 40°C Without Derating, 55°C With Derating |
| DC-link Voltage | 510 to 720 Volts DC |
| Maximum DC-link Current | 12 Amps |
| DC-link Capacitance | 220 Microfarads |
| Brand | Siemens |
